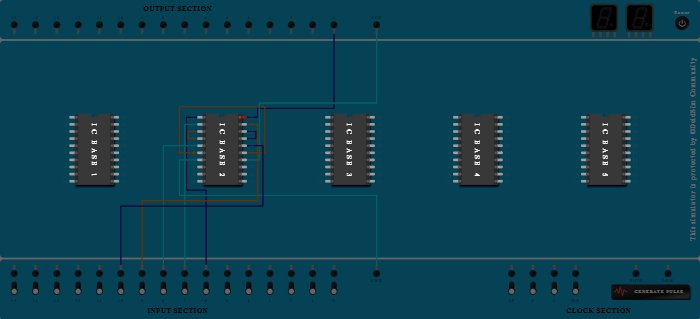

Procedure

  1. Connect Input-6 to Pin-1 (Input & Output) of ICBase-2.
  2. Connect Input-7 to Pin-2 (Input & Output) of ICBase-2.
  3. Connect Pin-4 (Input & Output) of ICBase-2 to Pin-3 (Input & Output) of ICBase-2.
  4. Connect GND Port to Pin-7 (Input & Output) of ICBase-2.
  5. Connect Output-0 to Pin-20 (Input & Output) of ICBase-2.
  6. Connect VCC Port to Pin-14 (Input & Output) of ICBase-2.
  7. Connect Pin-15 (Input & Output) of ICBase-2 to Pin-6 (Input & Output) of ICBase-2.
  8. Connect Pin-18 (Input & Output) of ICBase-2 to Pin-17 (Input & Output) of ICBase-2.
  9. Connect Input-8 to Pin-5 (Input & Output) of ICBase-2.
  10. Connect Input-9 to Pin-19 (Input & Output) of ICBase-2.
  11. Connect Input-10 to Pin-16 (Input & Output) of ICBase-2.
