Integrated Circuits Used

74LS20

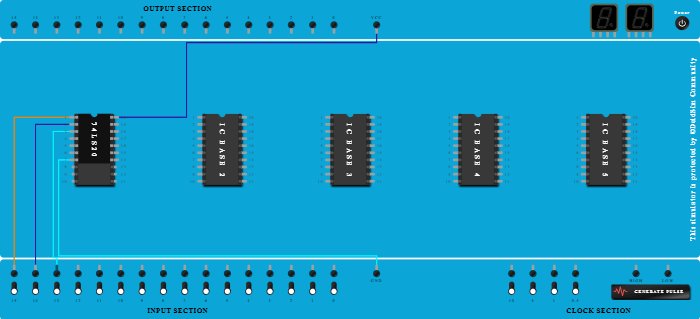

Procedure

  1. Add IC 74LS20 into ICBase-1 (74LS20).
  2. Connect Pin-20 (VCC) of ICBase-1 (74LS20) to VCC Port.
  3. Connect Pin-7 (Ground) of ICBase-1 (74LS20) to GND Port.
  4. Connect Pin-1 (Input) of ICBase-1 (74LS20) to Input-15.
  5. Connect Pin-2 (Input) of ICBase-1 (74LS20) to Input-14.
  6. Connect Pin-3 (Input & Output) of ICBase-1 (74LS20) to Input-13.
