Integrated Circuits Used

74LS76

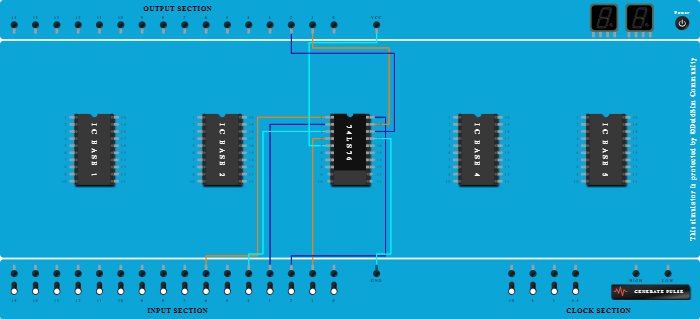

Procedure

  1. Add IC 74LS76 into ICBase-3 (74LS76).
  2. Connect Pin-1 (Input) of ICBase-3 (74LS76) to Input-6.
  3. Connect Pin-2 (Input) of ICBase-3 (74LS76) to Input-3.
  4. Connect Pin-3 (Input) of ICBase-3 (74LS76) to Input-4.
  5. Connect Pin-4 (Input) of ICBase-3 (74LS76) to Input-1.
  6. Connect Pin-20 (Input) of ICBase-3 (74LS76) to Input-2.
  7. Connect Pin-5 (VCC) of ICBase-3 (74LS76) to VCC Port.
  8. Connect Pin-19 (Output) of ICBase-3 (74LS76) to Output-1.
  9. Connect Pin-18 (Output) of ICBase-3 (74LS76) to Output-2.
  10. Connect Pin-17 (Ground) of ICBase-3 (74LS76) to GND Port.
