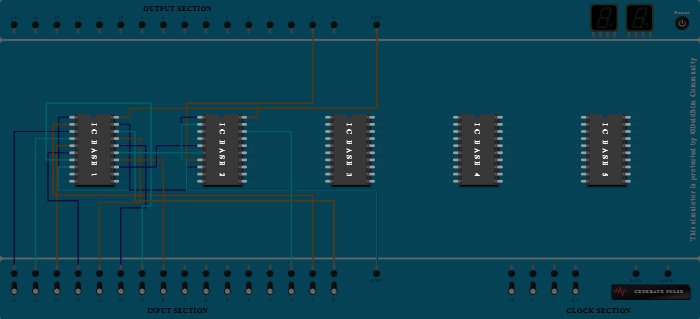

Procedure

  1. Connect GND Port to Pin-1 (Input & Output) of ICBase-1.
  2. Connect Input-1 to Pin-2 (Input & Output) of ICBase-1.
  3. Connect Input-15 to Pin-3 (Input & Output) of ICBase-1.
  4. Connect Input-14 to Pin-4 (Input & Output) of ICBase-1.
  5. Connect Input-13 to Pin-5 (Input & Output) of ICBase-1.
  6. Connect Input-12 to Pin-6 (Input & Output) of ICBase-1.
  7. Connect GND Port to Pin-8 (Input & Output) of ICBase-1.
  8. Connect VCC Port to Pin-20 (Input & Output) of ICBase-1.
  9. Connect GND Port to Pin-19 (Input & Output) of ICBase-1.
  10. Connect Input-0 to Pin-18 (Input & Output) of ICBase-1.
  11. Connect Input-11 to Pin-17 (Input & Output) of ICBase-1.
  12. Connect Input-10 to Pin-16 (Input & Output) of ICBase-1.
  13. Connect Input-9 to Pin-15 (Input & Output) of ICBase-1.
  14. Connect Input-8 to Pin-14 (Input & Output) of ICBase-1.
  15. Connect Pin-5 (Input & Output) of ICBase-2 to Pin-13 (Input & Output) of ICBase-1.
  16. Connect Pin-6 (Input & Output) of ICBase-2 to Pin-7 (Input & Output) of ICBase-1.
  17. Connect Output-1 to Pin-7 (Input & Output) of ICBase-2.
  18. Connect GND Port to Pin-8 (Input & Output) of ICBase-2.
  19. Connect Input-2 to Pin-18 (Input & Output) of ICBase-2.
  20. Connect VCC Port to Pin-20 (Input & Output) of ICBase-2.
  21. Connect GND Port to Pin-1 (Input & Output) of ICBase-2.
  22. Connect GND Port to Pin-2 (Input & Output) of ICBase-2.
  23. Connect Input-0 to Pin-2 (Input & Output) of ICBase-1.
