Integrated Circuits Used

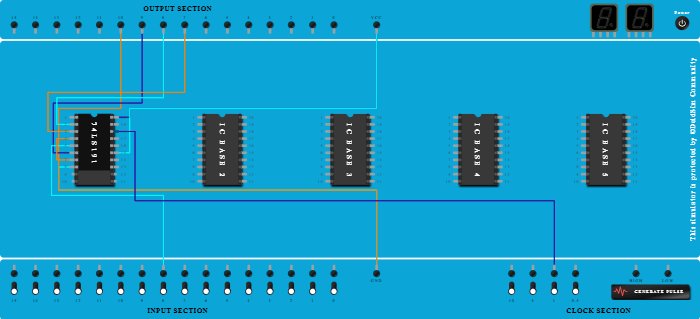

Procedure

  1. Add IC 74LS191 into ICBase-1 (74LS191).
  2. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS191).
  3. Connect GND Port to Pin-8 (Ground) of ICBase-1 (74LS191).
  4. Connect Output-10 to Pin-7 (Output) of ICBase-1 (74LS191).
  5. Connect Output-9 to Pin-6 (Output) of ICBase-1 (74LS191).
  6. Connect Output-8 to Pin-2 (Output) of ICBase-1 (74LS191).
  7. Connect Output-7 to Pin-3 (Output) of ICBase-1 (74LS191).
  8. Connect Input-8 to Pin-5 (Input) of ICBase-1 (74LS191).
  9. Connect GND Port to Pin-4 (Input) of ICBase-1 (74LS191).
  10. Connect VCC Port to Pin-15 (Input) of ICBase-1 (74LS191).
  11. Connect Clock port of 1Hz frequency to Pin-18 (Input) of ICBase-1 (74LS191).
