Integrated Circuits Used

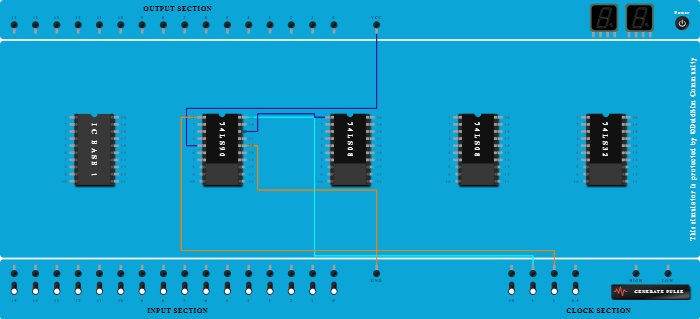

Procedure

  1. Add IC 74LS90 into ICBase-2 (74LS90).
  2. Connect GND Port to Pin-16 (Ground) of ICBase-2 (74LS90).
  3. Connect VCC Port to Pin-5 (VCC) of ICBase-2 (74LS90).
  4. Add IC 74LS08 into ICBase-3 (74LS08).
  5. Add IC 74LS08 into ICBase-4 (74LS08).
  6. Add IC 74LS32 into ICBase-5 (74LS32).
  7. Connect Pin-20 (Input) of ICBase-2 (74LS90) to Clock port of 5Hz frequency.
  8. Connect Pin-1 (Input) of ICBase-2 (74LS90) to Clock port of 1Hz frequency.
  9. Connect Pin-1 (Input) of ICBase-3 (74LS08) to Pin-18 (Output) of ICBase-2 (74LS90).
