New Circuit

sanket
sanket sasane
• Created on Nov 16, 2025 • 0 • 0 • 2
Edit Circuit Copy Circuit Try Yourself
New Circuit
100%

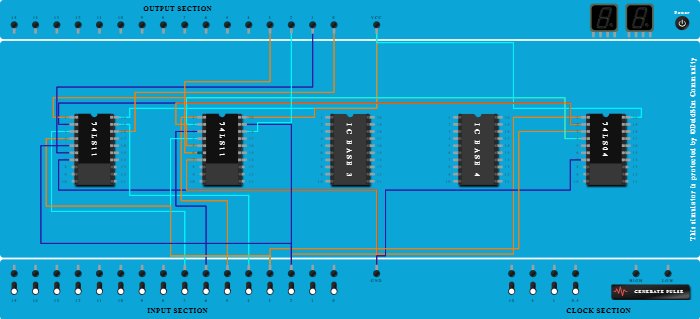

Integrated Circuits Used

74LS11 74LS04

Procedure

  1. Add IC 74LS11 into ICBase-1 (74LS11).
  2. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS11).
  3. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS11).
  4. Connect Pin-20 (VCC) of ICBase-2 (74LS11) to VCC Port.
  5. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS11).
  6. Add IC 74LS11 into ICBase-2 (74LS11).
  7. Connect Pin-1 (Input) of ICBase-5 (74LS04) to Input-2.
  8. Add IC 74LS04 into ICBase-5 (74LS04).
  9. Connect GND Port to Pin-7 (Ground) of ICBase-5 (74LS04).
  10. Connect VCC Port to Pin-20 (VCC) of ICBase-5 (74LS04).
  11. Connect Pin-3 (Input) of ICBase-5 (74LS04) to Input-3.
  12. Connect Pin-2 (Input) of ICBase-1 (74LS11) to Pin-2 (Output) of ICBase-5 (74LS04).
  13. Connect Input-4 to Pin-19 (Input) of ICBase-1 (74LS11).
  14. Connect Pin-1 (Input) of ICBase-1 (74LS11) to Pin-4 (Output) of ICBase-5 (74LS04).
  15. Connect Input-5 to Pin-1 (Input) of ICBase-2 (74LS11).
  16. Connect Pin-19 (Input) of ICBase-2 (74LS11) to Input-2.
  17. Connect Pin-2 (Input) of ICBase-2 (74LS11) to Pin-4 (Output) of ICBase-5 (74LS04).
  18. Connect Input-6 to Pin-3 (Input) of ICBase-2 (74LS11).
  19. Connect Pin-4 (Input) of ICBase-2 (74LS11) to Input-3.
  20. Connect Pin-5 (Input) of ICBase-2 (74LS11) to Pin-2 (Output) of ICBase-5 (74LS04).
  21. Connect Input-7 to Pin-3 (Input) of ICBase-1 (74LS11).
  22. Connect Pin-4 (Input) of ICBase-1 (74LS11) to Input-3.
  23. Connect Pin-5 (Input) of ICBase-1 (74LS11) to Input-2.
  24. Connect Output-0 to Pin-18 (Output) of ICBase-1 (74LS11).
  25. Connect Output-1 to Pin-6 (Output) of ICBase-1 (74LS11).
  26. Connect Output-2 to Pin-18 (Output) of ICBase-2 (74LS11).
  27. Connect Output-3 to Pin-6 (Output) of ICBase-2 (74LS11).
