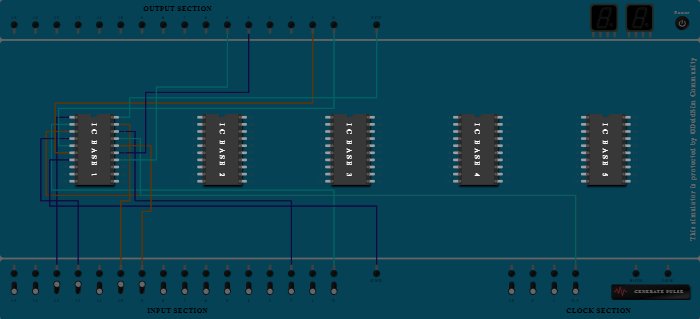

Procedure

  1. Connect Input-13 to Pin-1 (Input & Output) of ICBase-1.
  2. Connect Input-0 to Pin-2 (Input & Output) of ICBase-1.
  3. Connect Clock port of 0.5Hz frequency to Pin-3 (Input & Output) of ICBase-1.
  4. Connect Input-12 to Pin-4 (Input & Output) of ICBase-1.
  5. Connect Output-0 to Pin-5 (Input & Output) of ICBase-1.
  6. Connect Output-1 to Pin-6 (Input & Output) of ICBase-1.
  7. Connect GND Port to Pin-7 (Input & Output) of ICBase-1.
  8. Connect VCC Port to Pin-20 (Input & Output) of ICBase-1.
  9. Connect Input-10 to Pin-19 (Input & Output) of ICBase-1.
  10. Connect Input-2 to Pin-18 (Input & Output) of ICBase-1.
  11. Connect Clock port of 0.5Hz frequency to Pin-17 (Input & Output) of ICBase-1.
  12. Connect Input-9 to Pin-16 (Input & Output) of ICBase-1.
  13. Connect Output-4 to Pin-15 (Input & Output) of ICBase-1.
  14. Connect Output-5 to Pin-14 (Input & Output) of ICBase-1.
