Integrated Circuits Used

74LS76

Procedure

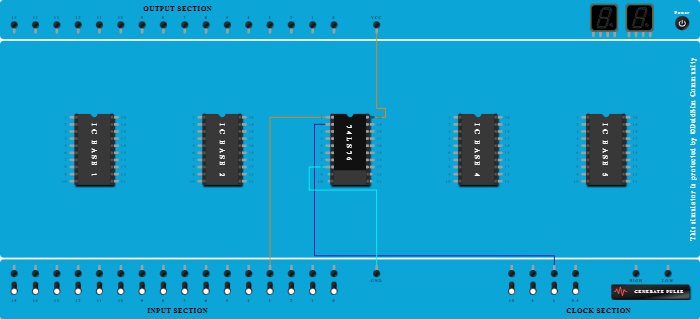

  1. Add IC 74LS76 into ICBase-3 (74LS76).
  2. Connect Input-3 to Pin-1 (Input) of ICBase-3 (74LS76).
  3. Connect Pin-2 (Input) of ICBase-3 (74LS76) to Clock port of 1Hz frequency.
  4. Connect GND Port to Pin-8 (Input) of ICBase-3 (74LS76).
  5. Connect VCC Port to Pin-20 (Input) of ICBase-3 (74LS76).
