Untitled circuit

ARYA
ARYA MANUSMARE
• Created on Oct 7, 2025 • 0 • 0 • 3
Edit Circuit Copy Circuit Try Yourself
Untitled circuit
100%

Integrated Circuits Used

74LS153 74LS04 74LS132

Procedure

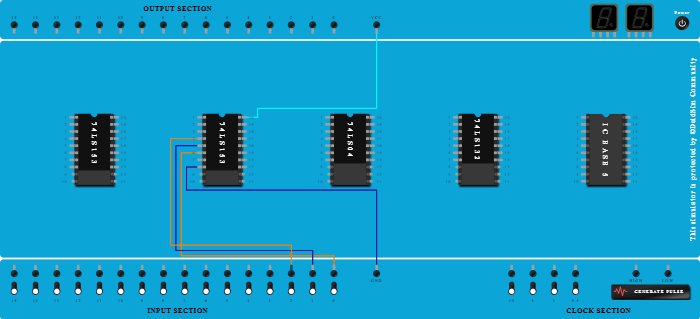

  1. Add IC 74LS153 into ICBase-1 (74LS153).
  2. Add IC 74LS153 into ICBase-2 (74LS153).
  3. Add IC 74LS04 into ICBase-3 (74LS04).
  4. Add IC 74LS132 into ICBase-4 (74LS132).
  5. Connect GND Port to Pin-8 (Ground) of ICBase-2 (74LS153).
  6. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS153).
  7. Connect Pin-6 (Input) of ICBase-2 (74LS153) to Input-0.
  8. Connect Pin-5 (Input) of ICBase-2 (74LS153) to Input-1.
  9. Connect Pin-4 (Input) of ICBase-2 (74LS153) to Input-2.
