8:1 MUX

Shiv
Shiv Jayade
• Created on Aug 25, 2025 • 1 • 0 • 1
Edit Circuit Copy Circuit Try Yourself

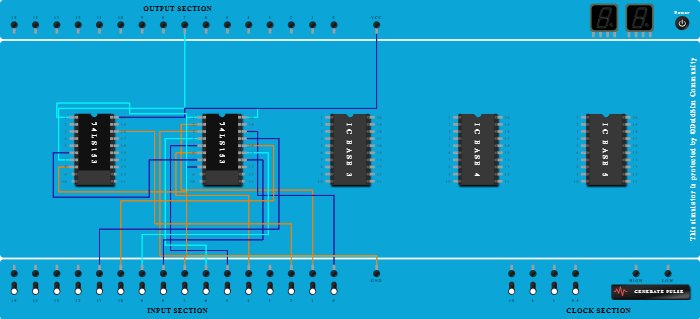

8:1 MUX
100%

Integrated Circuits Used

74LS153

Procedure

  1. Add IC 74LS153 into ICBase-2 (74LS153).
  2. Connect Pin-8 (Ground) of ICBase-2 (74LS153) to GND Port.
  3. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS153).
  4. Connect Input-1 to Pin-2 (Input) of ICBase-2 (74LS153).
  5. Connect Input-0 to Pin-18 (Input) of ICBase-2 (74LS153).
  6. Connect Pin-1 (Input) of ICBase-2 (74LS153) to GND Port.
  7. Connect Input-4 to Pin-6 (Input) of ICBase-2 (74LS153).
  8. Connect Pin-5 (Input) of ICBase-2 (74LS153) to Input-5.
  9. Connect Pin-4 (Input) of ICBase-2 (74LS153) to Input-6.
  10. Connect Pin-3 (Input) of ICBase-2 (74LS153) to Input-7.
  11. Add IC 74LS153 into ICBase-1 (74LS153).
  12. Connect Pin-14 (Input) of ICBase-2 (74LS153) to Input-8.
  13. Connect Pin-15 (Input) of ICBase-2 (74LS153) to Input-9.
  14. Connect Input-10 to Pin-16 (Input) of ICBase-2 (74LS153).
  15. Connect Pin-17 (Input) of ICBase-2 (74LS153) to Input-11.
  16. Connect Output-7 to Pin-7 (Output) of ICBase-1 (74LS153).
  17. Connect Pin-18 (Input) of ICBase-1 (74LS153) to Input-2.
  18. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS153).
  19. Connect GND Port to Pin-1 (Input) of ICBase-1 (74LS153).
  20. Connect GND Port to Pin-8 (Ground) of ICBase-1 (74LS153).
  21. Connect Pin-6 (Input) of ICBase-1 (74LS153) to Pin-7 (Output) of ICBase-2 (74LS153).
