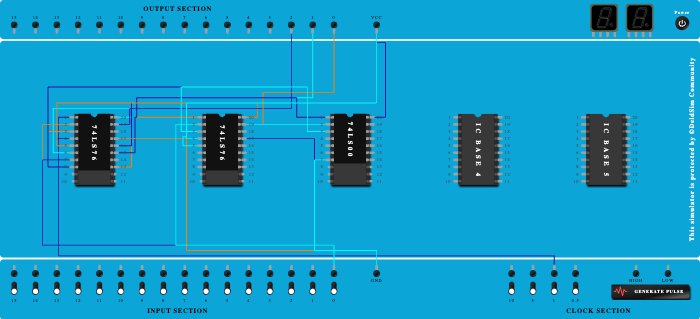

MOD 5 Asynchronous up counter
100%

Integrated Circuits Used

74LS76 74LS00

Procedure

  1. Add IC 74LS76 into ICBase-1 (74LS76).
  2. Add IC 74LS76 into ICBase-2 (74LS76).
  3. Connect Pin-1 (Input) of ICBase-1 (74LS76) to Clock port of 1Hz frequency.
  4. Connect Pin-6 (Input) of ICBase-1 (74LS76) to Pin-19 (Output) of ICBase-1 (74LS76).
  5. Connect Pin-1 (Input) of ICBase-2 (74LS76) to Pin-15 (Output) of ICBase-1 (74LS76).
  6. Connect VCC Port to Pin-4 (Input) of ICBase-1 (74LS76).
  7. Connect VCC Port to Pin-20 (Input) of ICBase-1 (74LS76).
  8. Connect VCC Port to Pin-13 (Input) of ICBase-1 (74LS76).
  9. Connect VCC Port to Pin-16 (Input) of ICBase-1 (74LS76).
  10. Connect VCC Port to Pin-4 (Input) of ICBase-2 (74LS76).
  11. Connect VCC Port to Pin-20 (Input) of ICBase-2 (74LS76).
  12. Connect Output-2 to Pin-19 (Output) of ICBase-1 (74LS76).
  13. Connect Output-1 to Pin-15 (Output) of ICBase-1 (74LS76).
  14. Connect Output-0 to Pin-19 (Output) of ICBase-2 (74LS76).
  15. Add IC 74LS00 into ICBase-3 (74LS00).
  16. Connect Pin-1 (Input) of ICBase-3 (74LS00) to Pin-15 (Output) of ICBase-1 (74LS76).
  17. Connect Pin-2 (Input) of ICBase-3 (74LS00) to Pin-19 (Output) of ICBase-2 (74LS76).
  18. Connect Pin-3 (Input) of ICBase-1 (74LS76) to Pin-3 (Output) of ICBase-3 (74LS00).
  19. Connect Pin-8 (Input) of ICBase-1 (74LS76) to Pin-3 (Output) of ICBase-3 (74LS00).
  20. Connect Pin-3 (Input) of ICBase-2 (74LS76) to Pin-3 (Output) of ICBase-3 (74LS00).
  21. Connect Pin-17 (Ground) of ICBase-1 (74LS76) to GND Port.
  22. Connect Pin-17 (Ground) of ICBase-2 (74LS76) to GND Port.
  23. Connect Pin-7 (Ground) of ICBase-3 (74LS00) to GND Port.
  24. Connect Pin-5 (VCC) of ICBase-1 (74LS76) to VCC Port.
  25. Connect Pin-20 (VCC) of ICBase-3 (74LS00) to VCC Port.
  26. Connect Pin-5 (VCC) of ICBase-2 (74LS76) to VCC Port.
  27. Connect Pin-2 (Input) of ICBase-1 (74LS76) to Input-0.
  28. Connect Pin-7 (Input) of ICBase-1 (74LS76) to Input-0.
  29. Connect Pin-2 (Input) of ICBase-2 (74LS76) to Input-0.
