Integrated Circuits Used

74LS90 74LS08

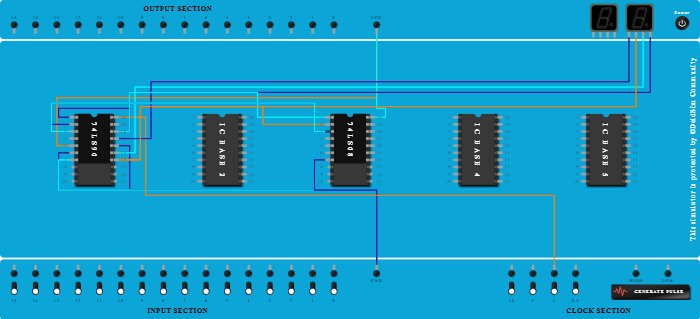

Procedure

  1. Add IC 74LS90 into ICBase-1 (74LS90).
  2. Connect Pin-1 (Input) of ICBase-1 (74LS90) to Pin-18 (Output) of ICBase-1 (74LS90).
  3. Connect GND Port to Pin-16 (Ground) of ICBase-1 (74LS90).
  4. Add IC 74LS08 into ICBase-3 (74LS08).
  5. Connect GND Port to Pin-6 (Input) of ICBase-1 (74LS90).
  6. Connect Pin-7 (Input) of ICBase-1 (74LS90) to GND Port.
  7. Connect VCC Port to Pin-5 (VCC) of ICBase-1 (74LS90).
  8. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS08).
