Mod-10 Counter using IC 7490

Kalash
Kalash Baldota
• Created on Dec 12, 2024 • 0 • 0 • 1
Edit Circuit Copy Circuit Try Yourself

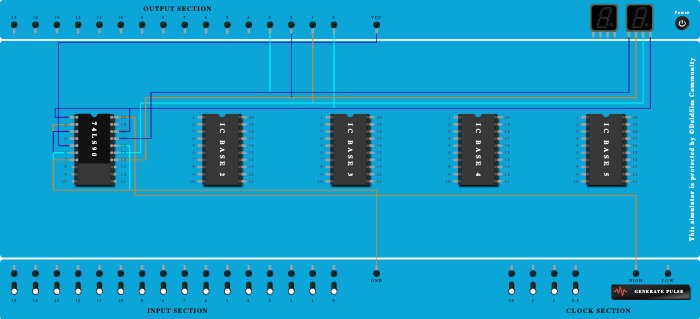

Mod-10 Counter using IC 7490
100%

Integrated Circuits Used

74LS90

Description

Design and implement Modulo ‘N’ counter using IC7490.(MOD-10)

Procedure

  1. Add IC 74LS90 into ICBase-1 (74LS90).
  2. Connect Pin-5 (VCC) of ICBase-1 (74LS90) to VCC Port.
  3. Connect GND Port to Pin-16 (Ground) of ICBase-1 (74LS90).
  4. Connect Manual clock Port to Pin-20 (Input) of ICBase-1 (74LS90).
  5. Connect Pin-1 (Input) of ICBase-1 (74LS90) to Pin-18 (Output) of ICBase-1 (74LS90).
  6. Connect Output-0 to Pin-18 (Output) of ICBase-1 (74LS90).
  7. Connect Output-1 to Pin-15 (Output) of ICBase-1 (74LS90).
  8. Connect Output-2 to Pin-14 (Output) of ICBase-1 (74LS90).
  9. Connect Output-3 to Pin-17 (Output) of ICBase-1 (74LS90).
  10. Connect GND Port to Pin-2 (Input) of ICBase-1 (74LS90).
  11. Connect GND Port to Pin-3 (Input) of ICBase-1 (74LS90).
  12. Connect GND Port to Pin-6 (Input) of ICBase-1 (74LS90).
  13. Connect GND Port to Pin-7 (Input) of ICBase-1 (74LS90).
  14. Connect Seven segment display 1 to Pin-18 (Output) of ICBase-1 (74LS90).
  15. Connect Seven segment display 1 to Pin-15 (Output) of ICBase-1 (74LS90).
  16. Connect Seven segment display 1 to Pin-14 (Output) of ICBase-1 (74LS90).
  17. Connect Seven segment display 1 to Pin-17 (Output) of ICBase-1 (74LS90).
  18. Connect Manual clock Port to ICBase-1 (74LS90).
  19. Connect Manual clock Port to ICBase-1 (74LS90).
  20. Connect VCC Port to ICBase-1 (74LS90).
