back Parity Generator
100%

Integrated Circuits Used

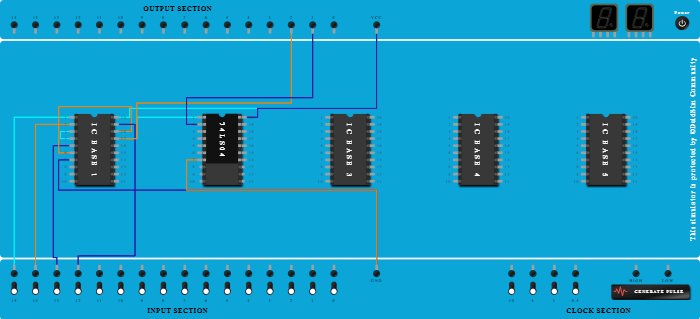

Procedure

  1. Add IC 74LS04 into ICBase-2 (74LS04).
  2. Connect GND Port to Pin-7 (Input & Output) of ICBase-1.
  3. Connect VCC Port to Pin-20 (Input & Output) of ICBase-1.
  4. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS04).
  5. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS04).
  6. Connect Pin-1 (Input & Output) of ICBase-1 to Input-15.
  7. Connect Pin-2 (Input & Output) of ICBase-1 to Input-14.
  8. Connect Pin-5 (Input & Output) of ICBase-1 to Input-13.
  9. Connect Pin-4 (Input & Output) of ICBase-1 to Pin-3 (Input & Output) of ICBase-1.
  10. Connect Pin-18 (Input & Output) of ICBase-1 to Pin-6 (Input & Output) of ICBase-1.
  11. Connect Pin-19 (Input & Output) of ICBase-1 to Input-12.
  12. Connect Pin-1 (Input) of ICBase-2 (74LS04) to Pin-17 (Input & Output) of ICBase-1.
  13. Connect Output-2 to Pin-17 (Input & Output) of ICBase-1.
  14. Connect Output-1 to Pin-2 (Output) of ICBase-2 (74LS04).
  15. Connect VCC Port to ICBase-2 (74LS04).
