Full adder using only 4:1 mux

Himanshu
Himanshu Chawre
Created on Oct 19, 2024 0 0 3
Full adder using only 4:1 mux
100%

Integrated Circuits Used

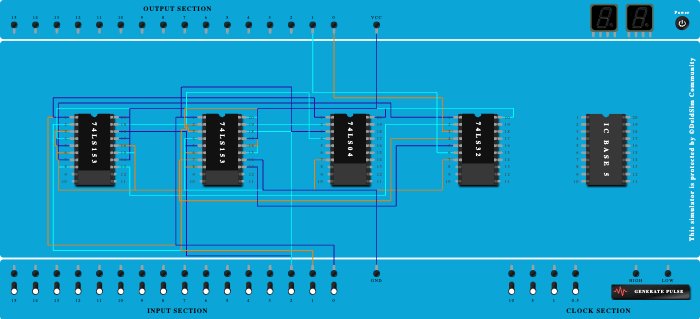

Procedure

  1. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS153).
  2. Connect GND Port to Pin-8 (Ground) of ICBase-1 (74LS153).
  3. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS04).
  4. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS04).
  5. Connect VCC Port to Pin-20 (VCC) of ICBase-4 (74LS32).
  6. Connect GND Port to Pin-7 (Ground) of ICBase-4 (74LS32).
  7. Connect Pin-1 (Input) of ICBase-4 (74LS32) to Pin-7 (Output) of ICBase-1 (74LS153).
  8. Connect Pin-2 (Input) of ICBase-4 (74LS32) to Pin-13 (Output) of ICBase-1 (74LS153).
  9. Connect Output-0 to Pin-3 (Output) of ICBase-4 (74LS32).
  10. Connect Pin-18 (Input) of ICBase-1 (74LS153) to Input-2.
  11. Connect Pin-2 (Input) of ICBase-1 (74LS153) to Input-1.
  12. Connect Pin-1 (Input) of ICBase-1 (74LS153) to Input-0.
  13. Connect Pin-1 (Input) of ICBase-1 (74LS153) to Pin-1 (Input) of ICBase-3 (74LS04).
  14. Connect Pin-19 (Input) of ICBase-1 (74LS153) to Pin-2 (Output) of ICBase-3 (74LS04).
  15. Connect GND Port to Pin-6 (Input) of ICBase-1 (74LS153).
  16. Connect VCC Port to Pin-5 (Input) of ICBase-1 (74LS153).
  17. Connect VCC Port to Pin-4 (Input) of ICBase-1 (74LS153).
  18. Connect GND Port to Pin-3 (Input) of ICBase-1 (74LS153).
  19. Connect VCC Port to Pin-14 (Input) of ICBase-1 (74LS153).
  20. Connect GND Port to Pin-15 (Input) of ICBase-1 (74LS153).
  21. Connect GND Port to Pin-16 (Input) of ICBase-1 (74LS153).
  22. Connect VCC Port to Pin-17 (Input) of ICBase-1 (74LS153).
  23. Add IC 74LS153 into ICBase-1 (74LS153).
  24. Add IC 74LS04 into ICBase-3 (74LS04).
  25. Add IC 74LS32 into ICBase-4 (74LS32).
  26. Connect Pin-18 (Input) of ICBase-2 (74LS153) to Input-2.
  27. Connect Pin-2 (Input) of ICBase-2 (74LS153) to Input-1.
  28. Connect Pin-1 (Input) of ICBase-2 (74LS153) to Input-0.
  29. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS153).
  30. Connect GND Port to Pin-8 (Ground) of ICBase-2 (74LS153).
  31. Connect Pin-3 (Input) of ICBase-3 (74LS04) to Pin-1 (Input) of ICBase-2 (74LS153).
  32. Connect Pin-19 (Input) of ICBase-2 (74LS153) to Pin-4 (Output) of ICBase-3 (74LS04).
  33. Connect Pin-4 (Input) of ICBase-4 (74LS32) to Pin-7 (Output) of ICBase-2 (74LS153).
  34. Connect Pin-5 (Input) of ICBase-4 (74LS32) to Pin-13 (Output) of ICBase-2 (74LS153).
  35. Connect Output-1 to Pin-6 (Output) of ICBase-4 (74LS32).
  36. Connect GND Port to Pin-6 (Input) of ICBase-2 (74LS153).
  37. Connect GND Port to Pin-5 (Input) of ICBase-2 (74LS153).
  38. Connect GND Port to Pin-4 (Input) of ICBase-2 (74LS153).
  39. Connect VCC Port to Pin-3 (Input) of ICBase-2 (74LS153).
  40. Connect GND Port to Pin-14 (Input) of ICBase-2 (74LS153).
  41. Connect VCC Port to Pin-15 (Input) of ICBase-2 (74LS153).
  42. Connect VCC Port to Pin-16 (Input) of ICBase-2 (74LS153).
  43. Connect VCC Port to Pin-17 (Input) of ICBase-2 (74LS153).
  44. Add IC 74LS153 into ICBase-2 (74LS153).
