Integrated Circuits Used

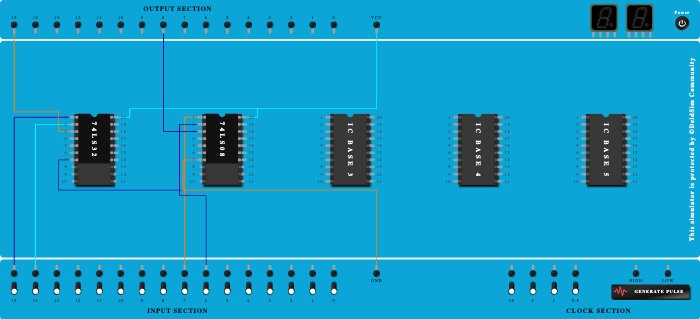

Procedure

  1. Add IC 74LS32 into ICBase-1 (74LS32).
  2. Connect Input-15 to Pin-1 (Input) of ICBase-1 (74LS32).
  3. Connect Input-14 to Pin-2 (Input) of ICBase-1 (74LS32).
  4. Connect Output-15 to Pin-3 (Output) of ICBase-1 (74LS32).
  5. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS32).
  6. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS32).
  7. Add IC 74LS08 into ICBase-2 (74LS08).
  8. Connect Input-7 to Pin-1 (Input) of ICBase-2 (74LS08).
  9. Connect Input-6 to Pin-2 (Input) of ICBase-2 (74LS08).
  10. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS08).
  11. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS08).
  12. Connect Output-8 to Pin-3 (Output) of ICBase-2 (74LS08).
