binary to gray

Abhinav
Abhinav Bathe
• Created on Mar 3, 2023 • 0 • 0 • 1
Edit Circuit Copy Circuit Try Yourself

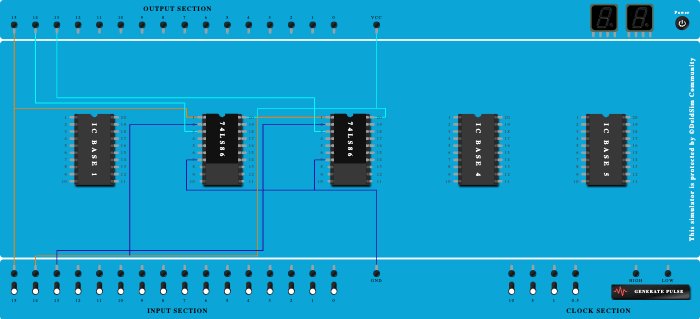

binary to gray
100%

Integrated Circuits Used

74LS86

Procedure

  1. Add IC 74LS86 into ICBase-2 (74LS86).
  2. Add IC 74LS86 into ICBase-3 (74LS86).
  3. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS86).
  4. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS86).
  5. Connect Output-15 to Input-15.
  6. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS86).
  7. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS86).
  8. Connect Input-15 to Pin-1 (Input) of ICBase-2 (74LS86).
  9. Connect Pin-2 (Input) of ICBase-2 (74LS86) to Input-14.
  10. Connect Output-14 to Pin-3 (Output) of ICBase-2 (74LS86).
  11. Connect Pin-1 (Input) of ICBase-3 (74LS86) to Input-14.
  12. Connect Pin-2 (Input) of ICBase-3 (74LS86) to Input-13.
  13. Connect Output-13 to Pin-3 (Output) of ICBase-3 (74LS86).
  14. Connect Input-14 to ICBase-2 (74LS86).
  15. Connect Input-13 to ICBase-3 (74LS86).
