Logical NAND gate

Anshul
Anshul Patil
Created on Feb 22, 2023 0 0 2
Logical NAND gate
100%

Integrated Circuits Used

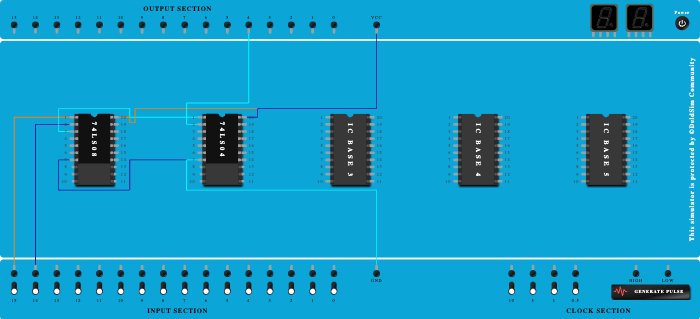

Procedure

  1. Add IC 74LS08 into ICBase-1 (74LS08).
  2. Add IC 74LS04 into ICBase-2 (74LS04).
  3. Connect Pin-7 (Ground) of ICBase-2 (74LS04) to Pin-7 (Ground) of ICBase-1 (74LS08).
  4. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS04).
  5. Connect Input-15 to Pin-1 (Input) of ICBase-1 (74LS08).
  6. Connect Input-14 to Pin-2 (Input) of ICBase-1 (74LS08).
  7. Connect Pin-1 (Input) of ICBase-2 (74LS04) to Pin-3 (Output) of ICBase-1 (74LS08).
  8. Connect Pin-20 (VCC) of ICBase-2 (74LS04) to Pin-20 (VCC) of ICBase-1 (74LS08).
  9. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS04).
  10. Connect Output-4 to Pin-2 (Output) of ICBase-2 (74LS04).
  11. Connect Pin-3 (Output) of ICBase-1 (74LS08) to ICBase-2 (74LS04).
