ass1

Tanay
Tanay Shah
Created on Feb 16, 2023 0 0 1
ass1
100%

Integrated Circuits Used

Procedure

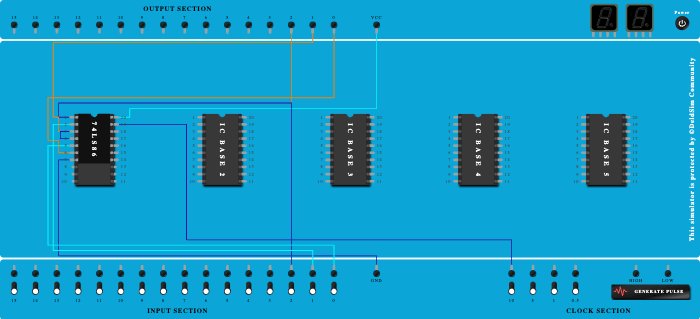

  1. Connect Pin-7 (Ground) of ICBase-1 (74LS86) to GND Port.
  2. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS86).
  3. Add IC 74LS86 into ICBase-1 (74LS86).
  4. Connect Output-2 to Input-2.
  5. Connect Pin-1 (Input) of ICBase-1 (74LS86) to Input-2.
  6. Connect Pin-2 (Input) of ICBase-1 (74LS86) to Input-1.
  7. Connect Pin-3 (Output) of ICBase-1 (74LS86) to Output-1.
  8. Connect Pin-3 (Output) of ICBase-1 (74LS86) to Pin-4 (Input) of ICBase-1 (74LS86).
  9. Connect Pin-5 (Input) of ICBase-1 (74LS86) to Input-0.
  10. Connect Output-0 to Pin-6 (Output) of ICBase-1 (74LS86).
  11. Connect Pin-19 (Input) of ICBase-1 (74LS86) to Clock port of 10Hz frequency.
  12. Connect Output-1 to ICBase-1 (74LS86).
  13. Connect Clock port of 10Hz frequency to ICBase-1 (74LS86).
