logic gate

Aviral
Aviral Yadav
Created on Feb 1, 2023 0 0 5
logic gate
100%

Integrated Circuits Used

Description

-

Procedure

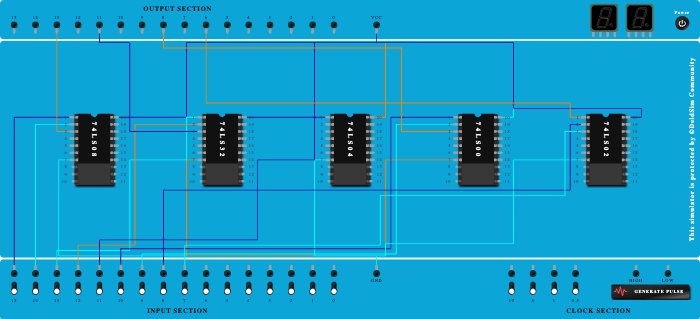

  1. Add IC 74LS08 into ICBase-1 (74LS08).
  2. Connect Pin-1 (Input) of ICBase-1 (74LS08) to Input-15.
  3. Connect Pin-2 (Input) of ICBase-1 (74LS08) to Input-14.
  4. Connect Pin-3 (Output) of ICBase-1 (74LS08) to Output-13.
  5. Connect Pin-20 (VCC) of ICBase-1 (74LS08) to VCC Port.
  6. Connect Pin-7 (Ground) of ICBase-1 (74LS08) to GND Port.
  7. Add IC 74LS32 into ICBase-2 (74LS32).
  8. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS32).
  9. Connect Pin-20 (VCC) of ICBase-2 (74LS32) to VCC Port.
  10. Connect Pin-1 (Input) of ICBase-2 (74LS32) to Input-13.
  11. Connect Pin-2 (Input) of ICBase-2 (74LS32) to Input-12.
  12. Connect Pin-3 (Output) of ICBase-2 (74LS32) to Output-11.
  13. Add IC 74LS04 into ICBase-3 (74LS04).
  14. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS04).
  15. Connect Pin-20 (VCC) of ICBase-3 (74LS04) to VCC Port.
  16. Connect Pin-1 (Input) of ICBase-3 (74LS04) to Input-11.
  17. Connect Input-11 to ICBase-3 (74LS04).
  18. Add IC 74LS00 into ICBase-4 (74LS00).
  19. Connect Pin-20 (VCC) of ICBase-4 (74LS00) to VCC Port.
  20. Connect Pin-7 (Ground) of ICBase-4 (74LS00) to GND Port.
  21. Connect Pin-1 (Input) of ICBase-4 (74LS00) to Input-10.
  22. Connect Pin-2 (Input) of ICBase-4 (74LS00) to Input-9.
  23. Connect Pin-3 (Output) of ICBase-4 (74LS00) to Output-8.
  24. Add IC 74LS02 into ICBase-5 (74LS02).
  25. Connect VCC Port to Pin-20 (VCC) of ICBase-5 (74LS02).
  26. Connect Pin-7 (Ground) of ICBase-5 (74LS02) to GND Port.
  27. Connect Output-6 to Pin-1 (Output) of ICBase-5 (74LS02).
  28. Connect Input-8 to Pin-2 (Input) of ICBase-5 (74LS02).
  29. Connect Input-7 to Pin-3 (Input) of ICBase-5 (74LS02).
