Testcircuitondeldsim

Preetham
Preetham Prasad
• Created on Feb 1, 2023 • 0 • 0 • 4
Edit Circuit Copy Circuit Try Yourself

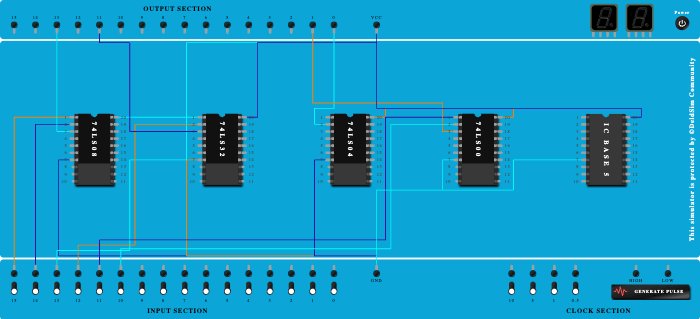

Testcircuitondeldsim
100%

Integrated Circuits Used

74LS08 74LS32 74LS04 74LS00

Procedure

  1. Add IC 74LS08 into ICBase-1 (74LS08).
  2. Connect Pin-7 (Ground) of ICBase-1 (74LS08) to GND Port.
  3. Connect Pin-20 (VCC) of ICBase-1 (74LS08) to VCC Port.
  4. Connect Input-15 to Pin-1 (Input) of ICBase-1 (74LS08).
  5. Connect Pin-2 (Input) of ICBase-1 (74LS08) to Input-14.
  6. Connect Pin-3 (Output) of ICBase-1 (74LS08) to Output-13.
  7. Connect Input-15 to ICBase-1 (74LS08).
  8. Connect Input-14 to ICBase-1 (74LS08).
  9. Add IC 74LS32 into ICBase-2 (74LS32).
  10. Connect Pin-7 (Ground) of ICBase-2 (74LS32) to GND Port.
  11. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS32).
  12. Connect Pin-1 (Input) of ICBase-2 (74LS32) to Input-13.
  13. Connect GND Port to ICBase-2 (74LS32).
  14. Connect VCC Port to ICBase-2 (74LS32).
  15. Connect Input-13 to ICBase-2 (74LS32).
  16. Add IC 74LS04 into ICBase-3 (74LS04).
  17. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS04).
  18. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS04).
  19. Connect Output-0 to Pin-2 (Output) of ICBase-3 (74LS04).
  20. Connect Pin-2 (Input) of ICBase-2 (74LS32) to Input-12.
  21. Connect Pin-3 (Output) of ICBase-2 (74LS32) to Output-11.
  22. Connect GND Port to Pin-7 (Ground) of ICBase-4 (74LS00).
  23. Connect VCC Port to Pin-20 (VCC) of ICBase-4 (74LS00).
  24. Connect Pin-1 (Input) of ICBase-4 (74LS00) to Input-11.
  25. Connect GND Port to ICBase-3 (74LS04).
  26. Connect Output-11 to ICBase-2 (74LS32).
  27. Add IC 74LS00 into ICBase-4 (74LS00).
  28. Connect Pin-2 (Input) of ICBase-4 (74LS00) to Input-10.
  29. Connect Output-1 to Pin-3 (Output) of ICBase-4 (74LS00).
  30. Connect VCC Port to Pin-20 (Input & Output) of ICBase-5.
  31. Connect Pin-7 (Input & Output) of ICBase-5 to GND Port.
  32. Connect Input-10 to ICBase-4 (74LS00).
