Integrated Circuits Used

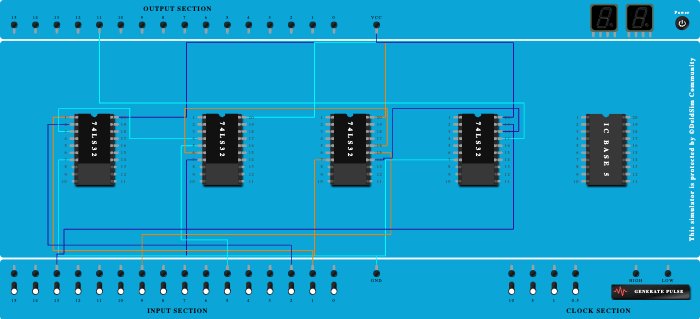

Procedure

  1. Add IC 74LS32 into ICBase-1 (74LS32).
  2. Add IC 74LS32 into ICBase-2 (74LS32).
  3. Add IC 74LS32 into ICBase-3 (74LS32).
  4. Add IC 74LS32 into ICBase-4 (74LS32).
  5. Connect Pin-20 (VCC) of ICBase-1 (74LS32) to VCC Port.
  6. Connect Pin-20 (VCC) of ICBase-2 (74LS32) to VCC Port.
  7. Connect Pin-20 (VCC) of ICBase-3 (74LS32) to VCC Port.
  8. Connect Pin-20 (VCC) of ICBase-4 (74LS32) to VCC Port.
  9. Connect Pin-7 (Ground) of ICBase-4 (74LS32) to GND Port.
  10. Connect Pin-7 (Ground) of ICBase-3 (74LS32) to GND Port.
  11. Connect Pin-7 (Ground) of ICBase-2 (74LS32) to GND Port.
  12. Connect Pin-7 (Ground) of ICBase-1 (74LS32) to GND Port.
  13. Connect Pin-1 (Input) of ICBase-1 (74LS32) to Input-1.
  14. Connect Pin-2 (Input) of ICBase-1 (74LS32) to Input-2.
  15. Connect Pin-5 (Input) of ICBase-2 (74LS32) to Input-5.
  16. Connect Pin-15 (Input) of ICBase-3 (74LS32) to Input-9.
  17. Connect Pin-19 (Input) of ICBase-4 (74LS32) to Input-13.
  18. Connect Pin-4 (Input) of ICBase-2 (74LS32) to Pin-3 (Output) of ICBase-1 (74LS32).
  19. Connect Pin-16 (Input) of ICBase-3 (74LS32) to Pin-6 (Output) of ICBase-2 (74LS32).
  20. Connect Pin-18 (Input) of ICBase-4 (74LS32) to Pin-14 (Output) of ICBase-3 (74LS32).
  21. Connect Output-11 to Pin-17 (Output) of ICBase-4 (74LS32).
