Integrated Circuits Used

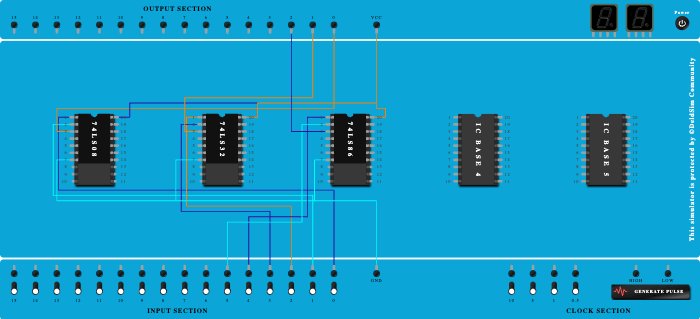

Procedure

  1. Connect Input-0 to Pin-1 (Input) of ICBase-1 (74LS08).
  2. Connect Input-1 to Pin-2 (Input) of ICBase-1 (74LS08).
  3. Connect Output-0 to Pin-3 (Output) of ICBase-1 (74LS08).
  4. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS08).
  5. Add IC 74LS08 into ICBase-1 (74LS08).
  6. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS08).
  7. Add IC 74LS32 into ICBase-2 (74LS32).
  8. Connect Input-2 to Pin-1 (Input) of ICBase-2 (74LS32).
  9. Connect Input-3 to Pin-2 (Input) of ICBase-2 (74LS32).
  10. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS32).
  11. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS32).
  12. Connect Input-4 to Pin-1 (Input) of ICBase-3 (74LS86).
  13. Connect Input-5 to Pin-2 (Input) of ICBase-3 (74LS86).
  14. Connect Output-1 to Pin-3 (Output) of ICBase-2 (74LS32).
  15. Connect Output-2 to Pin-3 (Output) of ICBase-3 (74LS86).
  16. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS86).
  17. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS86).
  18. Add IC 74LS86 into ICBase-3 (74LS86).
