mux

Udit
Udit Thapak
• Created on Feb 7, 2023 • 0 • 0 • 2
Edit Circuit Copy Circuit Try Yourself
mux
100%

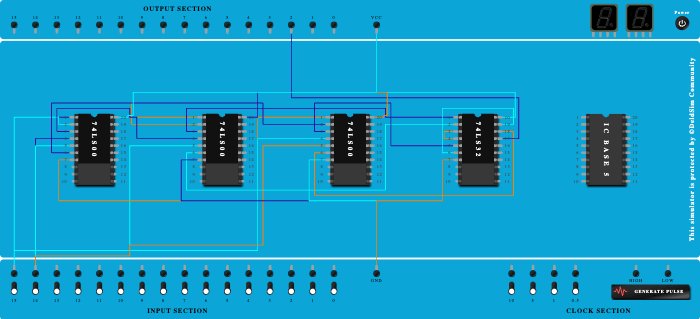

Integrated Circuits Used

74LS00 74LS32

Procedure

  1. Add IC 74LS00 into ICBase-2 (74LS00).
  2. Add IC 74LS00 into ICBase-3 (74LS00).
  3. Add IC 74LS00 into ICBase-1 (74LS00).
  4. Connect Input-15 to Pin-1 (Input) of ICBase-1 (74LS00).
  5. Connect Input-15 to Pin-2 (Input) of ICBase-1 (74LS00).
  6. Connect Pin-1 (Input) of ICBase-2 (74LS00) to Pin-3 (Output) of ICBase-1 (74LS00).
  7. Connect Input-14 to Pin-4 (Input) of ICBase-1 (74LS00).
  8. Connect Input-14 to Pin-5 (Input) of ICBase-1 (74LS00).
  9. Connect Pin-2 (Input) of ICBase-2 (74LS00) to Pin-6 (Output) of ICBase-1 (74LS00).
  10. Connect Pin-4 (Input) of ICBase-2 (74LS00) to Pin-3 (Output) of ICBase-1 (74LS00).
  11. Connect Pin-5 (Input) of ICBase-2 (74LS00) to Input-14.
  12. Connect Pin-1 (Input) of ICBase-3 (74LS00) to Input-15.
  13. Connect Pin-2 (Input) of ICBase-3 (74LS00) to Pin-6 (Output) of ICBase-1 (74LS00).
  14. Connect Pin-4 (Input) of ICBase-3 (74LS00) to Input-15.
  15. Connect Pin-5 (Input) of ICBase-3 (74LS00) to Input-14.
  16. Add IC 74LS32 into ICBase-4 (74LS32).
  17. Connect Pin-1 (Input) of ICBase-4 (74LS32) to Pin-3 (Output) of ICBase-2 (74LS00).
  18. Connect Pin-2 (Input) of ICBase-4 (74LS32) to Pin-6 (Output) of ICBase-2 (74LS00).
  19. Connect Pin-4 (Input) of ICBase-4 (74LS32) to Pin-3 (Output) of ICBase-4 (74LS32).
  20. Connect Pin-5 (Input) of ICBase-4 (74LS32) to Pin-3 (Output) of ICBase-3 (74LS00).
  21. Connect Pin-19 (Input) of ICBase-4 (74LS32) to Pin-6 (Output) of ICBase-4 (74LS32).
  22. Connect Pin-18 (Input) of ICBase-4 (74LS32) to Pin-6 (Output) of ICBase-3 (74LS00).
  23. Connect Output-2 to Pin-17 (Output) of ICBase-4 (74LS32).
  24. Connect VCC Port to Pin-20 (VCC) of ICBase-4 (74LS32).
  25. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS00).
  26. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS00).
  27. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS00).
  28. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS00).
  29. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS00).
  30. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS00).
  31. Connect GND Port to Pin-7 (Ground) of ICBase-4 (74LS32).
