153 something
100%

Integrated Circuits Used

74LS153 74LS32 74LS04

Description

8/2/23

Procedure

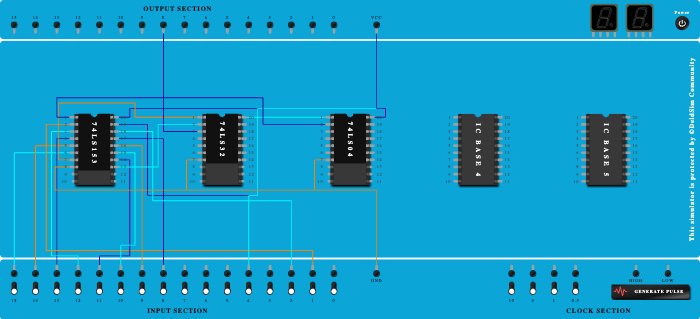

  1. Add IC 74LS153 into ICBase-1 (74LS153).
  2. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS153).
  3. Connect Pin-6 (Input) of ICBase-1 (74LS153) to Input-15.
  4. Connect Pin-5 (Input) of ICBase-1 (74LS153) to Input-14.
  5. Connect Pin-4 (Input) of ICBase-1 (74LS153) to Input-13.
  6. Connect Pin-3 (Input) of ICBase-1 (74LS153) to Input-12.
  7. Connect Pin-2 (Input) of ICBase-1 (74LS153) to Input-1.
  8. Connect Pin-14 (Input) of ICBase-1 (74LS153) to Input-11.
  9. Connect Pin-15 (Input) of ICBase-1 (74LS153) to Input-10.
  10. Connect Pin-16 (Input) of ICBase-1 (74LS153) to Input-9.
  11. Connect Pin-17 (Input) of ICBase-1 (74LS153) to Input-8.
  12. Add IC 74LS32 into ICBase-2 (74LS32).
  13. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS32).
  14. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS32).
  15. Connect Input-4 to Pin-19 (Input) of ICBase-1 (74LS153).
  16. Connect Input-2 to Pin-18 (Input) of ICBase-1 (74LS153).
  17. Connect Pin-1 (Input) of ICBase-2 (74LS32) to Pin-7 (Output) of ICBase-1 (74LS153).
  18. Connect Output-8 to Pin-3 (Output) of ICBase-2 (74LS32).
  19. Connect Pin-2 (Input) of ICBase-2 (74LS32) to Pin-13 (Output) of ICBase-1 (74LS153).
  20. Add IC 74LS04 into ICBase-3 (74LS04).
  21. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS04).
  22. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS04).
  23. Connect Pin-1 (Input) of ICBase-3 (74LS04) to Input-4.
  24. Connect GND Port to Pin-8 (Ground) of ICBase-1 (74LS153).
  25. Connect Pin-2 (Output) of ICBase-3 (74LS04) to Pin-1 (Input) of ICBase-1 (74LS153).
  26. Connect VCC Port to ICBase-3 (74LS04).
