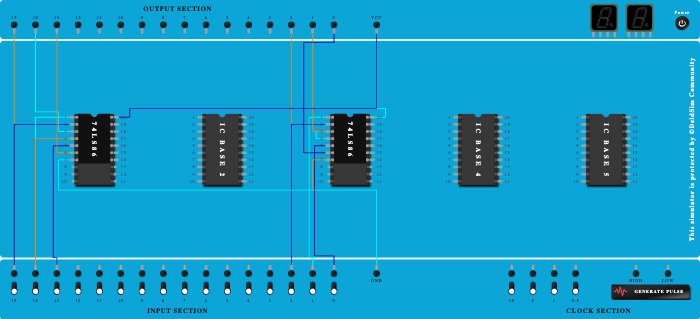

Conversion Binary to Gray - Gray to Binary
100%

Integrated Circuits Used

74LS86

Description

Binary to Gray - Gray to Binary

Procedure

  1. Add IC 74LS86 into ICBase-3 (74LS86).
  2. Connect Pin-5 (Input) of ICBase-3 (74LS86) to Input-0.
  3. Connect Pin-1 (Input) of ICBase-3 (74LS86) to Input-1.
  4. Connect Output-2 to Input-2.
  5. Connect Input-2 to Pin-2 (Input) of ICBase-3 (74LS86).
  6. Connect Pin-4 (Input) of ICBase-3 (74LS86) to Pin-3 (Output) of ICBase-3 (74LS86).
  7. Connect Output-1 to Pin-3 (Output) of ICBase-3 (74LS86).
  8. Connect Pin-6 (Output) of ICBase-3 (74LS86) to Output-0.
  9. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS86).
  10. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS86).
  11. Add IC 74LS86 into ICBase-1 (74LS86).
  12. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS86).
  13. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS86).
  14. Connect Output-15 to Input-15.
  15. Connect Pin-2 (Input) of ICBase-1 (74LS86) to Input-15.
  16. Connect Pin-1 (Input) of ICBase-1 (74LS86) to Input-14.
  17. Connect Pin-4 (Input) of ICBase-1 (74LS86) to Input-14.
  18. Connect Pin-5 (Input) of ICBase-1 (74LS86) to Input-13.
  19. Connect Output-14 to Pin-3 (Output) of ICBase-1 (74LS86).
  20. Connect Output-13 to Pin-6 (Output) of ICBase-1 (74LS86).
