multiplexer

Neel
Neel karnavat
• Created on Jan 31, 2023 • 0 • 0 • 2
Edit Circuit Copy Circuit Try Yourself

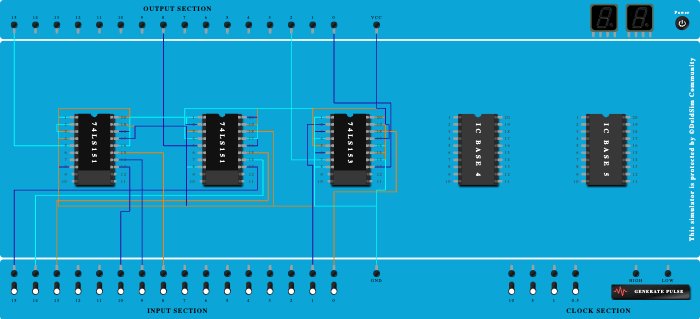

multiplexer
100%

Integrated Circuits Used

74LS151 74LS153

Procedure

  1. Connect Input-15 to Pin-13 (Input) of ICBase-2 (74LS151).
  2. Connect Input-14 to Pin-14 (Input) of ICBase-2 (74LS151).
  3. Connect Input-13 to Pin-15 (Input) of ICBase-2 (74LS151).
  4. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS151).
  5. Add IC 74LS151 into ICBase-2 (74LS151).
  6. Connect GND Port to Pin-1 (Input) of ICBase-2 (74LS151).
  7. Connect GND Port to Pin-3 (Input) of ICBase-2 (74LS151).
  8. Connect VCC Port to Pin-2 (Input) of ICBase-2 (74LS151).
  9. Connect VCC Port to Pin-4 (Input) of ICBase-2 (74LS151).
  10. Connect GND Port to Pin-18 (Input) of ICBase-2 (74LS151).
  11. Connect VCC Port to Pin-16 (Input) of ICBase-2 (74LS151).
  12. Connect VCC Port to Pin-17 (Input) of ICBase-2 (74LS151).
  13. Connect VCC Port to Pin-19 (Input) of ICBase-2 (74LS151).
  14. Connect Output-8 to Pin-5 (Output) of ICBase-2 (74LS151).
  15. Connect GND Port to Pin-8 (Ground) of ICBase-2 (74LS151).
  16. Add IC 74LS151 into ICBase-1 (74LS151).
  17. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS151).
  18. Connect GND Port to Pin-8 (Ground) of ICBase-1 (74LS151).
  19. Connect VCC Port to Pin-1 (Input) of ICBase-1 (74LS151).
  20. Connect VCC Port to Pin-3 (Input) of ICBase-1 (74LS151).
  21. Connect VCC Port to Pin-18 (Input) of ICBase-1 (74LS151).
  22. Connect VCC Port to Pin-16 (Input) of ICBase-1 (74LS151).
  23. Connect GND Port to Pin-19 (Input) of ICBase-1 (74LS151).
  24. Connect GND Port to Pin-17 (Input) of ICBase-1 (74LS151).
  25. Connect GND Port to Pin-2 (Input) of ICBase-1 (74LS151).
  26. Connect GND Port to Pin-4 (Input) of ICBase-1 (74LS151).
  27. Connect Input-9 to Pin-14 (Input) of ICBase-1 (74LS151).
  28. Connect Output-15 to Pin-5 (Output) of ICBase-1 (74LS151).
  29. Connect Input-8 to Pin-15 (Input) of ICBase-1 (74LS151).
  30. Connect Input-10 to Pin-13 (Input) of ICBase-1 (74LS151).
  31. Add IC 74LS153 into ICBase-3 (74LS153).
  32. Connect GND Port to Pin-8 (Ground) of ICBase-3 (74LS153).
  33. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS153).
  34. Connect GND Port to Pin-3 (Input) of ICBase-3 (74LS153).
  35. Connect VCC Port to Pin-4 (Input) of ICBase-3 (74LS153).
  36. Connect VCC Port to Pin-5 (Input) of ICBase-3 (74LS153).
  37. Connect GND Port to Pin-6 (Input) of ICBase-3 (74LS153).
  38. Connect GND Port to Pin-16 (Input) of ICBase-3 (74LS153).
  39. Connect GND Port to Pin-15 (Input) of ICBase-3 (74LS153).
  40. Connect Output-0 to Pin-13 (Output) of ICBase-3 (74LS153).
  41. Connect Output-2 to Pin-7 (Output) of ICBase-3 (74LS153).
  42. Connect Input-0 to Pin-18 (Input) of ICBase-3 (74LS153).
  43. Connect Input-1 to Pin-2 (Input) of ICBase-3 (74LS153).
  44. Connect GND Port to Pin-1 (Input) of ICBase-3 (74LS153).
  45. Connect GND Port to Pin-19 (Input) of ICBase-3 (74LS153).
  46. Connect VCC Port to Pin-17 (Input) of ICBase-3 (74LS153).
  47. Connect GND Port to Pin-14 (Input) of ICBase-3 (74LS153).
  48. Connect GND Port to ICBase-3 (74LS153).
