sop
100%

Integrated Circuits Used

74LS151 74LS153

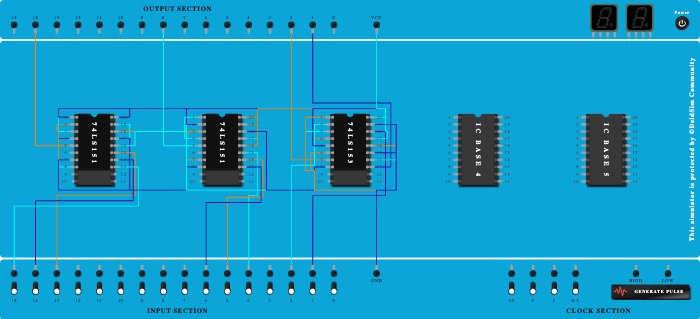

Procedure

  1. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS151).
  2. Add IC 74LS151 into ICBase-1 (74LS151).
  3. Connect GND Port to Pin-8 (Ground) of ICBase-1 (74LS151).
  4. Connect Output-14 to Pin-5 (Output) of ICBase-1 (74LS151).
  5. Connect GND Port to Pin-4 (Input) of ICBase-1 (74LS151).
  6. Connect VCC Port to Pin-3 (Input) of ICBase-1 (74LS151).
  7. Connect GND Port to Pin-2 (Input) of ICBase-1 (74LS151).
  8. Connect VCC Port to Pin-1 (Input) of ICBase-1 (74LS151).
  9. Connect GND Port to Pin-19 (Input) of ICBase-1 (74LS151).
  10. Connect Pin-18 (Input) of ICBase-1 (74LS151) to VCC Port.
  11. Connect GND Port to Pin-17 (Input) of ICBase-1 (74LS151).
  12. Connect VCC Port to Pin-16 (Input) of ICBase-1 (74LS151).
  13. Connect Input-13 to Pin-15 (Input) of ICBase-1 (74LS151).
  14. Connect Input-14 to Pin-14 (Input) of ICBase-1 (74LS151).
  15. Connect Input-15 to Pin-13 (Input) of ICBase-1 (74LS151).
  16. Add IC 74LS151 into ICBase-2 (74LS151).
  17. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS151).
  18. Connect GND Port to Pin-8 (Ground) of ICBase-2 (74LS151).
  19. Connect Input-4 to Pin-15 (Input) of ICBase-2 (74LS151).
  20. Connect Input-5 to Pin-14 (Input) of ICBase-2 (74LS151).
  21. Connect Input-6 to Pin-13 (Input) of ICBase-2 (74LS151).
  22. Connect Output-8 to Pin-5 (Output) of ICBase-2 (74LS151).
  23. Connect GND Port to Pin-7 (Input) of ICBase-2 (74LS151).
  24. Connect GND Port to Pin-7 (Input) of ICBase-1 (74LS151).
  25. Connect VCC Port to Pin-4 (Input) of ICBase-2 (74LS151).
  26. Connect GND Port to Pin-3 (Input) of ICBase-2 (74LS151).
  27. Connect VCC Port to Pin-2 (Input) of ICBase-2 (74LS151).
  28. Connect GND Port to Pin-1 (Input) of ICBase-2 (74LS151).
  29. Connect VCC Port to Pin-19 (Input) of ICBase-2 (74LS151).
  30. Connect GND Port to Pin-18 (Input) of ICBase-2 (74LS151).
  31. Connect VCC Port to Pin-17 (Input) of ICBase-2 (74LS151).
  32. Connect VCC Port to Pin-16 (Input) of ICBase-2 (74LS151).
  33. Add IC 74LS153 into ICBase-3 (74LS153).
  34. Connect GND Port to Pin-8 (Ground) of ICBase-3 (74LS153).
  35. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS153).
  36. Connect Output-2 to Pin-7 (Output) of ICBase-3 (74LS153).
  37. Connect Input-1 to Pin-18 (Input) of ICBase-3 (74LS153).
  38. Connect Input-2 to Pin-2 (Input) of ICBase-3 (74LS153).
  39. Connect VCC Port to Pin-4 (Input) of ICBase-3 (74LS153).
  40. Connect VCC Port to Pin-5 (Input) of ICBase-3 (74LS153).
  41. Connect GND Port to Pin-3 (Input) of ICBase-3 (74LS153).
  42. Connect GND Port to Pin-6 (Input) of ICBase-3 (74LS153).
  43. Connect Output-1 to Pin-13 (Output) of ICBase-3 (74LS153).
  44. Connect VCC Port to Pin-17 (Input) of ICBase-3 (74LS153).
  45. Connect GND Port to Pin-16 (Input) of ICBase-3 (74LS153).
  46. Connect GND Port to Pin-15 (Input) of ICBase-3 (74LS153).
  47. Connect GND Port to Pin-14 (Input) of ICBase-3 (74LS153).
  48. Connect GND Port to Pin-1 (Input) of ICBase-3 (74LS153).
  49. Connect GND Port to Pin-19 (Input) of ICBase-3 (74LS153).
  50. Connect VCC Port to ICBase-3 (74LS153).
