8-1 using 2x 4-1 MUX Reduced

Varun
Varun Balawade
• Created on Mar 6, 2023 • 0 • 0 • 2
Edit Circuit Copy Circuit Try Yourself

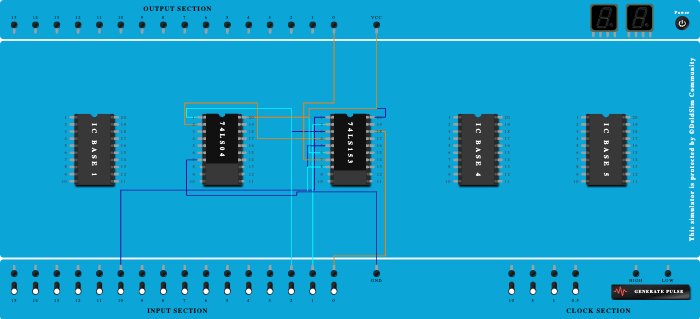

8-1 using 2x 4-1 MUX Reduced
100%

Integrated Circuits Used

74LS153 74LS04

Procedure

  1. Add IC 74LS153 into ICBase-3 (74LS153).
  2. Connect Input-10 to Pin-1 (Input) of ICBase-3 (74LS153).
  3. Connect Input-1 to Pin-2 (Input) of ICBase-3 (74LS153).
  4. Connect Pin-18 (Input) of ICBase-3 (74LS153) to Input-0.
  5. Connect Pin-3 (Input) of ICBase-3 (74LS153) to Input-2.
  6. Connect Pin-1 (Input) of ICBase-2 (74LS04) to Input-2.
  7. Connect Pin-4 (Input) of ICBase-3 (74LS153) to Pin-2 (Output) of ICBase-2 (74LS04).
  8. Connect GND Port to Pin-5 (Input) of ICBase-3 (74LS153).
  9. Connect VCC Port to Pin-6 (Input) of ICBase-3 (74LS153).
  10. Add IC 74LS04 into ICBase-2 (74LS04).
  11. Connect Output-0 to Pin-7 (Output) of ICBase-3 (74LS153).
  12. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS153).
  13. Connect GND Port to Pin-8 (Ground) of ICBase-3 (74LS153).
  14. Connect Pin-20 (VCC) of ICBase-2 (74LS04) to VCC Port.
  15. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS04).
