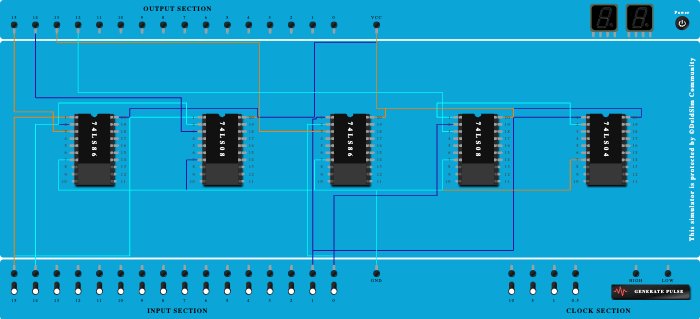

Integrated Circuits Used

74LS86 74LS08 74LS04

Procedure

  1. Add IC 74LS86 into ICBase-1 (74LS86).
  2. Add IC 74LS08 into ICBase-2 (74LS08).
  3. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS08).
  4. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS86).
  5. Connect Pin-20 (VCC) of ICBase-2 (74LS08) to VCC Port.
  6. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS86).
  7. Connect Pin-1 (Input) of ICBase-2 (74LS08) to Input-15.
  8. Connect Pin-1 (Input) of ICBase-1 (74LS86) to Input-15.
  9. Connect Input-14 to Pin-2 (Input) of ICBase-1 (74LS86).
  10. Connect Input-14 to Pin-2 (Input) of ICBase-2 (74LS08).
  11. Connect Output-15 to Pin-3 (Output) of ICBase-1 (74LS86).
  12. Connect Output-14 to Pin-3 (Output) of ICBase-2 (74LS08).
  13. Add IC 74LS86 into ICBase-3 (74LS86).
  14. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS86).
  15. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS86).
  16. Connect Input-1 to Pin-1 (Input) of ICBase-3 (74LS86).
  17. Connect Pin-2 (Input) of ICBase-3 (74LS86) to Input-0.
  18. Connect Pin-3 (Output) of ICBase-3 (74LS86) to Output-13.
  19. Connect GND Port to ICBase-1 (74LS86).
  20. Connect Input-15 to ICBase-2 (74LS08).
  21. Connect GND Port to ICBase-3 (74LS86).
  22. Connect Input-1 to ICBase-3 (74LS86).
  23. Connect Output-13 to ICBase-3 (74LS86).
  24. Add IC 74LS04 into ICBase-5 (74LS04).
  25. Connect Pin-1 (Input) of ICBase-5 (74LS04) to Input-1.
  26. Connect Output-12 to Pin-3 (Output) of ICBase-4 (74LS08).
  27. Connect GND Port to Pin-7 (Ground) of ICBase-5 (74LS04).
  28. Connect VCC Port to Pin-20 (VCC) of ICBase-5 (74LS04).
  29. Add IC 74LS08 into ICBase-4 (74LS08).
  30. Connect GND Port to Pin-7 (Ground) of ICBase-4 (74LS08).
  31. Connect VCC Port to Pin-20 (VCC) of ICBase-4 (74LS08).
  32. Connect Input-0 to Pin-2 (Input) of ICBase-4 (74LS08).
  33. Connect Pin-1 (Input) of ICBase-4 (74LS08) to Pin-2 (Output) of ICBase-5 (74LS04).
  34. Connect Pin-2 (Output) of ICBase-5 (74LS04) to ICBase-4 (74LS08).
  35. Connect Pin-2 (Output) of ICBase-5 (74LS04) to ICBase-4 (74LS08).
