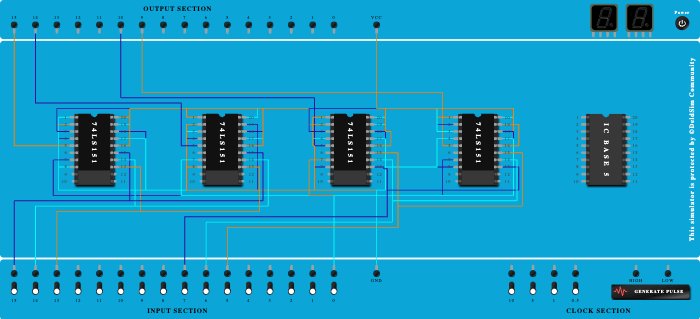

Full Adder and Subtractor using mux
100%

Integrated Circuits Used

74LS151

Description

Full adder and subtractor using mux

Procedure

  1. Connect GND Port to Pin-4 (Input) of ICBase-1 (74LS151).
  2. Connect GND Port to Pin-1 (Input) of ICBase-1 (74LS151).
  3. Connect Output-15 to Pin-5 (Output) of ICBase-1 (74LS151).
  4. Connect Input-0 to Pin-7 (Input) of ICBase-1 (74LS151).
  5. Connect GND Port to Pin-8 (Ground) of ICBase-1 (74LS151).
  6. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS151).
  7. Connect Input-15 to Pin-15 (Input) of ICBase-1 (74LS151).
  8. Connect Input-14 to Pin-14 (Input) of ICBase-1 (74LS151).
  9. Connect Input-13 to Pin-13 (Input) of ICBase-1 (74LS151).
  10. Connect GND Port to Pin-18 (Input) of ICBase-1 (74LS151).
  11. Connect GND Port to Pin-17 (Input) of ICBase-1 (74LS151).
  12. Connect VCC Port to Pin-2 (Input) of ICBase-1 (74LS151).
  13. Connect VCC Port to Pin-3 (Input) of ICBase-1 (74LS151).
  14. Connect VCC Port to Pin-19 (Input) of ICBase-1 (74LS151).
  15. Connect VCC Port to Pin-16 (Input) of ICBase-1 (74LS151).
  16. Connect GND Port to Pin-4 (Input) of ICBase-2 (74LS151).
  17. Connect GND Port to Pin-3 (Input) of ICBase-2 (74LS151).
  18. Connect GND Port to Pin-2 (Input) of ICBase-2 (74LS151).
  19. Connect GND Port to Pin-19 (Input) of ICBase-2 (74LS151).
  20. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS151).
  21. Connect GND Port to Pin-8 (Ground) of ICBase-2 (74LS151).
  22. Connect Output-14 to Pin-5 (Output) of ICBase-2 (74LS151).
  23. Connect Input-0 to Pin-7 (Input) of ICBase-2 (74LS151).
  24. Connect VCC Port to Pin-1 (Input) of ICBase-2 (74LS151).
  25. Connect VCC Port to Pin-18 (Input) of ICBase-2 (74LS151).
  26. Connect VCC Port to Pin-17 (Input) of ICBase-2 (74LS151).
  27. Connect VCC Port to Pin-16 (Input) of ICBase-2 (74LS151).
  28. Connect Input-15 to Pin-15 (Input) of ICBase-2 (74LS151).
  29. Connect Input-14 to Pin-14 (Input) of ICBase-2 (74LS151).
  30. Connect Input-13 to Pin-13 (Input) of ICBase-2 (74LS151).
  31. Connect GND Port to Pin-8 (Ground) of ICBase-3 (74LS151).
  32. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS151).
  33. Connect Input-0 to Pin-7 (Input) of ICBase-3 (74LS151).
  34. Connect Output-10 to Pin-5 (Output) of ICBase-3 (74LS151).
  35. Connect GND Port to Pin-4 (Input) of ICBase-3 (74LS151).
  36. Connect GND Port to Pin-1 (Input) of ICBase-3 (74LS151).
  37. Connect GND Port to Pin-18 (Input) of ICBase-3 (74LS151).
  38. Connect GND Port to Pin-17 (Input) of ICBase-3 (74LS151).
  39. Connect VCC Port to Pin-2 (Input) of ICBase-3 (74LS151).
  40. Connect VCC Port to Pin-3 (Input) of ICBase-3 (74LS151).
  41. Connect VCC Port to Pin-19 (Input) of ICBase-3 (74LS151).
  42. Connect VCC Port to Pin-16 (Input) of ICBase-3 (74LS151).
  43. Connect GND Port to Pin-8 (Ground) of ICBase-4 (74LS151).
  44. Connect VCC Port to Pin-20 (VCC) of ICBase-4 (74LS151).
  45. Connect Output-9 to Pin-5 (Output) of ICBase-4 (74LS151).
  46. Connect Input-0 to Pin-7 (Input) of ICBase-4 (74LS151).
  47. Connect GND Port to Pin-4 (Input) of ICBase-4 (74LS151).
  48. Connect Input-0 to Pin-19 (Input) of ICBase-4 (74LS151).
  49. Connect Input-0 to Pin-18 (Input) of ICBase-4 (74LS151).
  50. Connect Input-0 to Pin-17 (Input) of ICBase-4 (74LS151).
  51. Connect VCC Port to Pin-1 (Input) of ICBase-4 (74LS151).
  52. Connect VCC Port to Pin-2 (Input) of ICBase-4 (74LS151).
  53. Connect VCC Port to Pin-3 (Input) of ICBase-4 (74LS151).
  54. Connect VCC Port to Pin-16 (Input) of ICBase-4 (74LS151).
  55. Connect Input-7 to Pin-13 (Input) of ICBase-3 (74LS151).
  56. Connect Input-6 to Pin-14 (Input) of ICBase-3 (74LS151).
  57. Connect Input-5 to Pin-15 (Input) of ICBase-3 (74LS151).
  58. Connect Input-7 to Pin-13 (Input) of ICBase-4 (74LS151).
  59. Connect Input-6 to Pin-14 (Input) of ICBase-4 (74LS151).
  60. Connect Input-5 to Pin-15 (Input) of ICBase-4 (74LS151).
  61. Add IC 74LS151 into ICBase-1 (74LS151).
  62. Add IC 74LS151 into ICBase-2 (74LS151).
  63. Add IC 74LS151 into ICBase-3 (74LS151).
  64. Add IC 74LS151 into ICBase-4 (74LS151).
