DEEPAK G THOMAS - Copy - Copy
100%

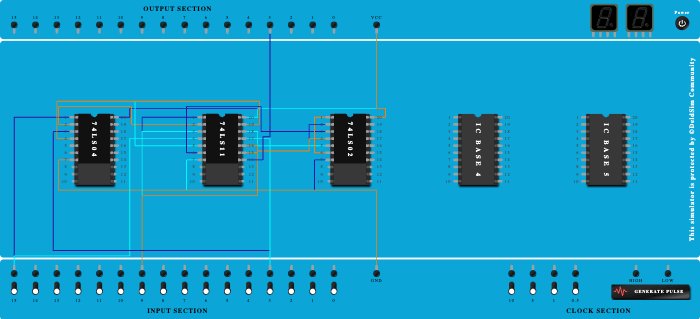

Integrated Circuits Used

74LS02 74LS04 74LS11

Description

binary cell

Procedure

  1. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS04).
  2. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS11).
  3. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS02).
  4. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS02).
  5. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS11).
  6. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS04).
  7. Connect Pin-1 (Input) of ICBase-1 (74LS04) to Input-15.
  8. Connect Pin-4 (Input) of ICBase-2 (74LS11) to Input-15.
  9. Connect Pin-2 (Input) of ICBase-2 (74LS11) to Pin-2 (Output) of ICBase-1 (74LS04).
  10. Connect Pin-1 (Input) of ICBase-2 (74LS11) to Input-9.
  11. Connect Input-9 to Pin-3 (Input) of ICBase-2 (74LS11).
  12. Connect Input-9 to Pin-15 (Input) of ICBase-2 (74LS11).
  13. Connect Pin-3 (Input) of ICBase-1 (74LS04) to Input-3.
  14. Connect Pin-5 (Input) of ICBase-2 (74LS11) to Pin-4 (Output) of ICBase-1 (74LS04).
  15. Connect Pin-19 (Input) of ICBase-2 (74LS11) to Pin-4 (Output) of ICBase-1 (74LS04).
  16. Connect Pin-3 (Input) of ICBase-3 (74LS02) to Pin-6 (Output) of ICBase-2 (74LS11).
  17. Connect Pin-5 (Input) of ICBase-3 (74LS02) to Pin-18 (Output) of ICBase-2 (74LS11).
  18. Connect Pin-1 (Output) of ICBase-3 (74LS02) to Pin-6 (Input) of ICBase-3 (74LS02).
  19. Connect Pin-4 (Output) of ICBase-3 (74LS02) to Pin-2 (Input) of ICBase-3 (74LS02).
  20. Connect Pin-17 (Input) of ICBase-2 (74LS11) to Input-3.
  21. Connect Pin-16 (Input) of ICBase-2 (74LS11) to Pin-4 (Output) of ICBase-3 (74LS02).
  22. Connect Output-3 to Pin-14 (Output) of ICBase-2 (74LS11).
  23. Add IC 74LS02 into ICBase-3 (74LS02).
  24. Add IC 74LS04 into ICBase-1 (74LS04).
  25. Add IC 74LS11 into ICBase-2 (74LS11).
