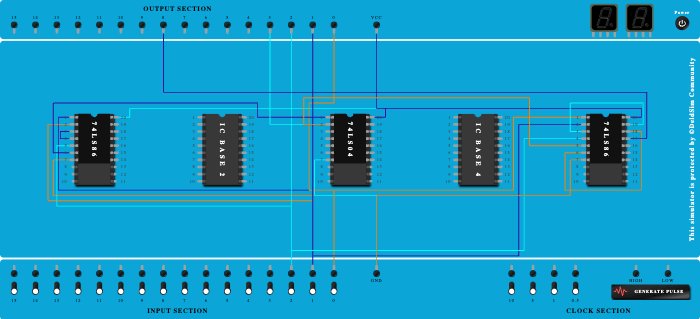

Integrated Circuits Used

74LS86 74LS04

Procedure

  1. Add IC 74LS86 into ICBase-1 (74LS86).
  2. Add IC 74LS04 into ICBase-3 (74LS04).
  3. Connect Input-0 to Pin-1 (Input) of ICBase-1 (74LS86).
  4. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS86).
  5. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS86).
  6. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS04).
  7. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS04).
  8. Connect Input-1 to Pin-2 (Input) of ICBase-1 (74LS86).
  9. Connect Pin-4 (Input) of ICBase-1 (74LS86) to Pin-3 (Output) of ICBase-1 (74LS86).
  10. Connect Input-2 to Pin-5 (Input) of ICBase-1 (74LS86).
  11. Connect Output-0 to Input-0.
  12. Connect Output-1 to Input-1.
  13. Connect Output-2 to Input-2.
  14. Add IC 74LS86 into ICBase-5 (74LS86).
  15. Connect Pin-1 (Input) of ICBase-5 (74LS86) to Input-0.
  16. Connect Pin-2 (Input) of ICBase-5 (74LS86) to Input-1.
  17. Connect Pin-4 (Input) of ICBase-5 (74LS86) to Input-2.
  18. Connect GND Port to Pin-7 (Ground) of ICBase-5 (74LS86).
  19. Connect VCC Port to Pin-20 (VCC) of ICBase-5 (74LS86).
  20. Connect Pin-19 (Input) of ICBase-5 (74LS86) to Pin-3 (Output) of ICBase-5 (74LS86).
  21. Connect Pin-18 (Input) of ICBase-5 (74LS86) to Pin-6 (Output) of ICBase-5 (74LS86).
  22. Connect Pin-1 (Input) of ICBase-3 (74LS04) to Pin-6 (Output) of ICBase-1 (74LS86).
  23. Connect Output-3 to Pin-2 (Output) of ICBase-3 (74LS04).
  24. Connect Pin-5 (Input) of ICBase-5 (74LS86) to Pin-2 (Output) of ICBase-3 (74LS04).
  25. Connect Output-8 to Pin-17 (Output) of ICBase-5 (74LS86).
