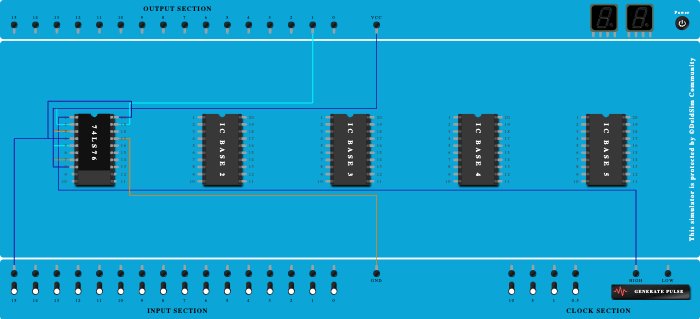

RIPPLE UP/DOWN COUNTER - Copy
100%

Integrated Circuits Used

74LS76

Procedure

  1. Add IC 74LS76 into ICBase-1 (74LS76).
  2. Connect Manual clock Port to Pin-1 (Input) of ICBase-1 (74LS76).
  3. Connect VCC Port to Pin-2 (Input) of ICBase-1 (74LS76).
  4. Connect Pin-3 (Input) of ICBase-1 (74LS76) to VCC Port.
  5. Connect Pin-4 (Input) of ICBase-1 (74LS76) to Input-15.
  6. Connect VCC Port to Pin-5 (VCC) of ICBase-1 (74LS76).
  7. Connect VCC Port to Pin-7 (Input) of ICBase-1 (74LS76).
  8. Connect VCC Port to Pin-8 (Input) of ICBase-1 (74LS76).
  9. Connect Output-1 to Pin-19 (Output) of ICBase-1 (74LS76).
  10. Connect GND Port to Pin-17 (Ground) of ICBase-1 (74LS76).
  11. Connect Input-15 to Pin-20 (Input) of ICBase-1 (74LS76).
  12. Connect Manual clock Port to ICBase-1 (74LS76).
