odd parity

Atharva
Atharva Ingle
Created on Jan 12, 2023 0 0 2
odd parity
100%

Integrated Circuits Used

Procedure

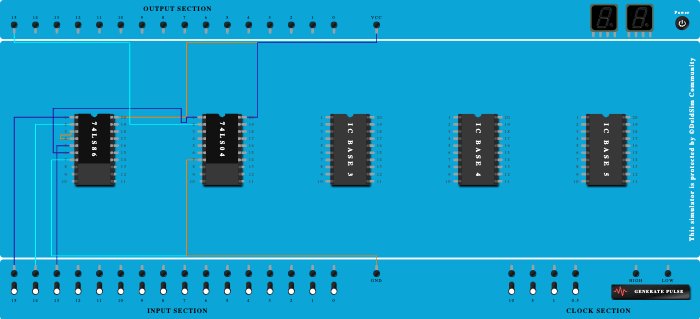

  1. Add IC 74LS86 into ICBase-1 (74LS86).
  2. Connect Pin-1 (Input) of ICBase-1 (74LS86) to Input-15.
  3. Connect Pin-2 (Input) of ICBase-1 (74LS86) to Input-14.
  4. Connect Pin-4 (Input) of ICBase-1 (74LS86) to ICBase-1 (74LS86).
  5. Connect Pin-5 (Input) of ICBase-1 (74LS86) to Input-13.
  6. Connect Pin-7 (Ground) of ICBase-1 (74LS86) to GND Port.
  7. Connect Pin-20 (VCC) of ICBase-1 (74LS86) to VCC Port.
  8. Connect Input-15 to ICBase-1 (74LS86).
  9. Connect Output-15 to ICBase-1 (74LS86).
  10. Connect GND Port to ICBase-1 (74LS86).
  11. Connect VCC Port to ICBase-1 (74LS86).
  12. Add IC 74LS04 into ICBase-2 (74LS04).
  13. Connect Pin-6 (Output) of ICBase-1 (74LS86) to Pin-1 (Input) of ICBase-2 (74LS04).
  14. Connect Pin-2 (Output) of ICBase-2 (74LS04) to Output-15.
  15. Connect Pin-7 (Ground) of ICBase-2 (74LS04) to GND Port.
  16. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS04).
  17. Connect Pin-1 (Input) of ICBase-2 (74LS04) to ICBase-1 (74LS86).
  18. Connect Output-15 to ICBase-2 (74LS04).
  19. Connect GND Port to ICBase-2 (74LS04).
