T Flip-Flop

A
A Hal
Created on Jan 10, 2023 0 0 2
T Flip-Flop
100%

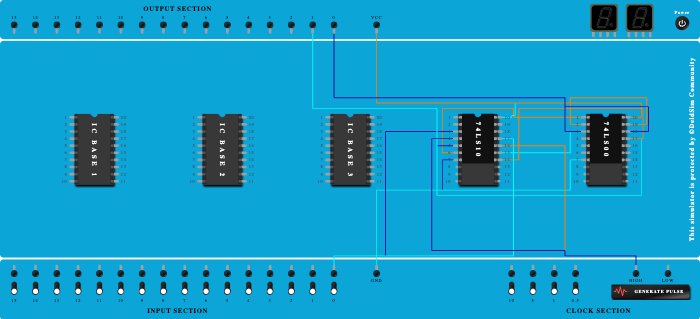

Integrated Circuits Used

Procedure

  1. Connect GND Port to Pin-7 (Ground) of ICBase-4 (74LS10).
  2. Connect GND Port to Pin-7 (Ground) of ICBase-5 (74LS00).
  3. Connect Pin-1 (Input) of ICBase-5 (74LS00) to Pin-6 (Output) of ICBase-4 (74LS10).
  4. Connect Pin-3 (Input) of ICBase-4 (74LS10) to Input-0.
  5. Connect VCC Port to Pin-20 (VCC) of ICBase-4 (74LS10).
  6. Connect VCC Port to Pin-20 (VCC) of ICBase-5 (74LS00).
  7. Connect Pin-5 (Input) of ICBase-4 (74LS10) to Pin-17 (Output) of ICBase-5 (74LS00).
  8. Connect Output-1 to Pin-17 (Output) of ICBase-5 (74LS00).
  9. Connect Pin-17 (Output) of ICBase-5 (74LS00) to Pin-2 (Input) of ICBase-5 (74LS00).
  10. Connect Output-0 to Pin-3 (Output) of ICBase-5 (74LS00).
  11. Connect Pin-15 (Input) of ICBase-4 (74LS10) to Pin-3 (Output) of ICBase-5 (74LS00).
  12. Connect Pin-19 (Input) of ICBase-5 (74LS00) to Pin-14 (Output) of ICBase-4 (74LS10).
  13. Connect Pin-18 (Input) of ICBase-5 (74LS00) to Pin-3 (Output) of ICBase-5 (74LS00).
  14. Connect Pin-17 (Input) of ICBase-4 (74LS10) to Input-0.
  15. Add IC 74LS10 into ICBase-4 (74LS10).
  16. Add IC 74LS00 into ICBase-5 (74LS00).
  17. Connect Pin-16 (Input) of ICBase-4 (74LS10) to Manual clock Port.
  18. Connect Pin-4 (Input) of ICBase-4 (74LS10) to Manual clock Port.
