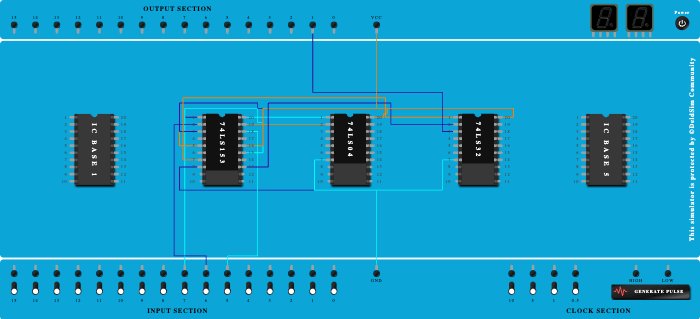

Integrated Circuits Used

74LS153 74LS04 74LS32

Procedure

  1. Add IC 74LS153 into ICBase-2 (74LS153).
  2. Connect Pin-1 (Input) of ICBase-2 (74LS153) to Input-7.
  3. Connect Pin-1 (Input) of ICBase-3 (74LS04) to Input-7.
  4. Add IC 74LS04 into ICBase-3 (74LS04).
  5. Connect Pin-19 (Input) of ICBase-2 (74LS153) to Pin-2 (Output) of ICBase-3 (74LS04).
  6. Connect GND Port to Pin-8 (Ground) of ICBase-2 (74LS153).
  7. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS153).
  8. Connect VCC Port to Pin-5 (Input) of ICBase-2 (74LS153).
  9. Connect VCC Port to Pin-3 (Input) of ICBase-2 (74LS153).
  10. Connect VCC Port to Pin-15 (Input) of ICBase-2 (74LS153).
  11. Connect VCC Port to Pin-16 (Input) of ICBase-2 (74LS153).
  12. Connect Pin-2 (Input) of ICBase-2 (74LS153) to Input-6.
  13. Connect Pin-18 (Input) of ICBase-2 (74LS153) to Input-5.
  14. Connect Pin-1 (Input) of ICBase-4 (74LS32) to Pin-7 (Output) of ICBase-2 (74LS153).
  15. Connect Pin-2 (Input) of ICBase-4 (74LS32) to Pin-13 (Output) of ICBase-2 (74LS153).
  16. Connect Pin-1 (Input) of ICBase-4 (74LS32) to ICBase-2 (74LS153).
  17. Add IC 74LS32 into ICBase-4 (74LS32).
  18. Connect GND Port to Pin-7 (Ground) of ICBase-4 (74LS32).
  19. Connect VCC Port to Pin-20 (VCC) of ICBase-4 (74LS32).
  20. Connect Output-1 to Pin-3 (Output) of ICBase-4 (74LS32).
  21. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS04).
  22. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS04).
