Sairaj - Assignment 4

Sairaj
Sairaj Mane
• Created on Jan 2, 2023 • 0 • 0 • 2
Edit Circuit Copy Circuit Try Yourself

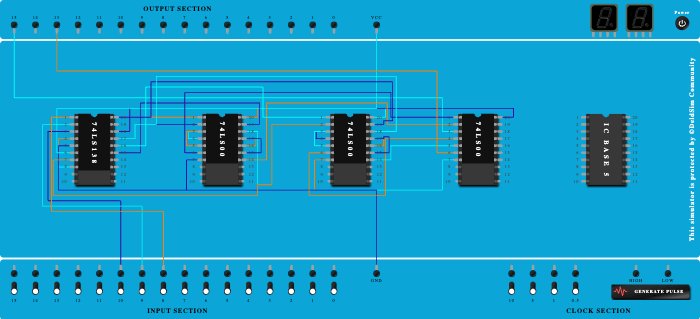

Sairaj - Assignment 4
100%

Integrated Circuits Used

74LS138 74LS00

Description

Full Subtractor

Procedure

  1. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS138).
  2. Connect GND Port to Pin-8 (Ground) of ICBase-1 (74LS138).
  3. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS00).
  4. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS00).
  5. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS00).
  6. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS00).
  7. Connect VCC Port to Pin-20 (VCC) of ICBase-4 (74LS00).
  8. Connect GND Port to Pin-7 (Ground) of ICBase-4 (74LS00).
  9. Connect GND Port to Pin-4 (Input) of ICBase-1 (74LS138).
  10. Connect GND Port to Pin-5 (Input) of ICBase-1 (74LS138).
  11. Connect VCC Port to Pin-6 (Input) of ICBase-1 (74LS138).
  12. Connect Pin-1 (Input) of ICBase-2 (74LS00) to Pin-18 (Output) of ICBase-1 (74LS138).
  13. Connect Pin-2 (Input) of ICBase-2 (74LS00) to Pin-17 (Output) of ICBase-1 (74LS138).
  14. Connect Pin-4 (Input) of ICBase-2 (74LS00) to Pin-3 (Output) of ICBase-2 (74LS00).
  15. Connect Pin-5 (Input) of ICBase-2 (74LS00) to Pin-3 (Output) of ICBase-2 (74LS00).
  16. Connect Pin-19 (Input) of ICBase-2 (74LS00) to Pin-15 (Output) of ICBase-1 (74LS138).
  17. Connect Pin-18 (Input) of ICBase-2 (74LS00) to Pin-7 (Output) of ICBase-1 (74LS138).
  18. Connect Pin-16 (Input) of ICBase-2 (74LS00) to Pin-17 (Output) of ICBase-2 (74LS00).
  19. Connect Pin-15 (Input) of ICBase-2 (74LS00) to Pin-17 (Output) of ICBase-2 (74LS00).
  20. Connect Output-15 to Pin-3 (Output) of ICBase-4 (74LS00).
  21. Connect Pin-2 (Input) of ICBase-4 (74LS00) to Pin-14 (Output) of ICBase-2 (74LS00).
  22. Connect Pin-1 (Input) of ICBase-4 (74LS00) to Pin-6 (Output) of ICBase-2 (74LS00).
  23. Connect Pin-1 (Input) of ICBase-3 (74LS00) to Pin-16 (Output) of ICBase-1 (74LS138).
  24. Connect Pin-2 (Input) of ICBase-3 (74LS00) to Pin-7 (Output) of ICBase-1 (74LS138).
  25. Connect Pin-4 (Input) of ICBase-3 (74LS00) to Pin-3 (Output) of ICBase-3 (74LS00).
  26. Connect Pin-5 (Input) of ICBase-3 (74LS00) to Pin-3 (Output) of ICBase-3 (74LS00).
  27. Connect Pin-4 (Input) of ICBase-4 (74LS00) to Pin-6 (Output) of ICBase-3 (74LS00).
  28. Connect Pin-19 (Input) of ICBase-3 (74LS00) to Pin-18 (Output) of ICBase-1 (74LS138).
  29. Connect Pin-18 (Input) of ICBase-3 (74LS00) to Pin-17 (Output) of ICBase-1 (74LS138).
  30. Connect Pin-16 (Input) of ICBase-3 (74LS00) to Pin-17 (Output) of ICBase-3 (74LS00).
  31. Connect Pin-15 (Input) of ICBase-3 (74LS00) to Pin-17 (Output) of ICBase-3 (74LS00).
  32. Connect Pin-5 (Input) of ICBase-4 (74LS00) to Pin-14 (Output) of ICBase-3 (74LS00).
  33. Connect Output-13 to Pin-6 (Output) of ICBase-4 (74LS00).
  34. Connect Input-10 to Pin-3 (Input) of ICBase-1 (74LS138).
  35. Connect Input-9 to Pin-2 (Input) of ICBase-1 (74LS138).
  36. Connect Input-8 to Pin-1 (Input) of ICBase-1 (74LS138).
  37. Add IC 74LS138 into ICBase-1 (74LS138).
  38. Add IC 74LS00 into ICBase-2 (74LS00).
  39. Add IC 74LS00 into ICBase-3 (74LS00).
  40. Add IC 74LS00 into ICBase-4 (74LS00).
