BCD adder

Yash
Yash Dhake
• Created on Jan 1, 2023 • 0 • 0 • 2
Edit Circuit Copy Circuit Try Yourself

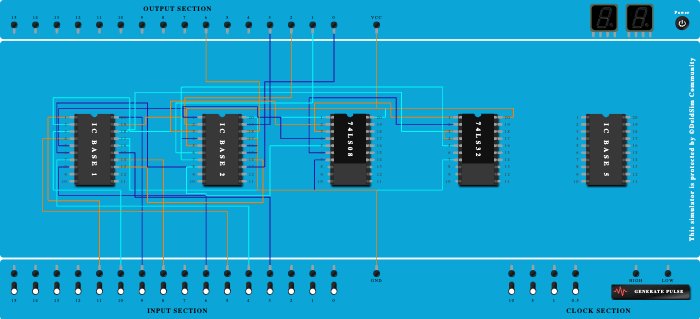

BCD adder
100%

Integrated Circuits Used

74LS08 74LS32

Procedure

  1. Add IC 74LS08 into ICBase-3 (74LS08).
  2. Add IC 74LS32 into ICBase-4 (74LS32).
  3. Connect VCC Port to Pin-5 (Input & Output) of ICBase-1.
  4. Connect GND Port to Pin-16 (Input & Output) of ICBase-1.
  5. Connect VCC Port to Pin-5 (Input & Output) of ICBase-2.
  6. Connect GND Port to Pin-16 (Input & Output) of ICBase-2.
  7. Connect GND Port to Pin-17 (Input & Output) of ICBase-1.
  8. Connect Input-8 to Pin-14 (Input & Output) of ICBase-1.
  9. Connect Input-9 to Pin-8 (Input & Output) of ICBase-1.
  10. Connect Input-10 to Pin-3 (Input & Output) of ICBase-1.
  11. Connect Input-11 to Pin-1 (Input & Output) of ICBase-1.
  12. Connect Input-3 to Pin-15 (Input & Output) of ICBase-1.
  13. Connect Input-4 to Pin-7 (Input & Output) of ICBase-1.
  14. Connect Input-5 to Pin-4 (Input & Output) of ICBase-1.
  15. Connect Input-6 to Pin-20 (Input & Output) of ICBase-1.
  16. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS08).
  17. Connect VCC Port to Pin-20 (VCC) of ICBase-4 (74LS32).
  18. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS08).
  19. Connect GND Port to Pin-7 (Ground) of ICBase-4 (74LS32).
  20. Connect Pin-14 (Input & Output) of ICBase-2 to Pin-13 (Input & Output) of ICBase-1.
  21. Connect Pin-8 (Input & Output) of ICBase-2 to Pin-6 (Input & Output) of ICBase-1.
  22. Connect Pin-3 (Input & Output) of ICBase-2 to Pin-2 (Input & Output) of ICBase-1.
  23. Connect Pin-1 (Input & Output) of ICBase-2 to Pin-19 (Input & Output) of ICBase-1.
  24. Connect GND Port to Pin-15 (Input & Output) of ICBase-2.
  25. Connect GND Port to Pin-20 (Input & Output) of ICBase-2.
  26. Connect Pin-1 (Input) of ICBase-4 (74LS32) to Pin-3 (Output) of ICBase-3 (74LS08).
  27. Connect Pin-2 (Input) of ICBase-4 (74LS32) to Pin-6 (Output) of ICBase-3 (74LS08).
  28. Connect Pin-3 (Output) of ICBase-4 (74LS32) to Pin-18 (Input & Output) of ICBase-1.
  29. Connect Pin-4 (Input) of ICBase-4 (74LS32) to Pin-3 (Output) of ICBase-4 (74LS32).
  30. Connect Pin-4 (Input & Output) of ICBase-2 to Pin-5 (Input) of ICBase-4 (74LS32).
  31. Connect Pin-7 (Input & Output) of ICBase-2 to Pin-5 (Input) of ICBase-4 (74LS32).
  32. Connect GND Port to Pin-17 (Input & Output) of ICBase-2.
  33. Connect Output-0 to Pin-13 (Input & Output) of ICBase-2.
  34. Connect Output-1 to Pin-6 (Input & Output) of ICBase-2.
  35. Connect Output-2 to Pin-2 (Input & Output) of ICBase-2.
  36. Connect Output-3 to Pin-19 (Input & Output) of ICBase-2.
  37. Connect Pin-1 (Input) of ICBase-3 (74LS08) to Pin-1 (Input & Output) of ICBase-2.
  38. Connect Pin-2 (Input) of ICBase-3 (74LS08) to Pin-3 (Input & Output) of ICBase-2.
  39. Connect Pin-4 (Input) of ICBase-3 (74LS08) to Pin-1 (Input & Output) of ICBase-2.
  40. Connect Pin-5 (Input) of ICBase-3 (74LS08) to Pin-8 (Input & Output) of ICBase-2.
  41. Connect Output-6 to Pin-18 (Input & Output) of ICBase-2.
