and gate or gate

Jayanth
Jayanth jayanth
Created on Dec 29, 2022 0 0 2
and gate or gate
100%

Integrated Circuits Used

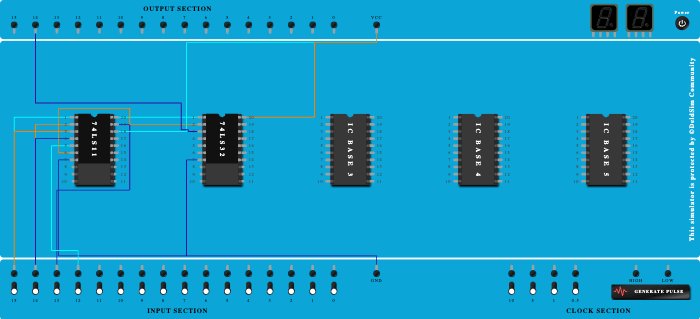

Procedure

  1. Connect Pin-7 (Ground) of ICBase-1 (74LS11) to GND Port.
  2. Connect Pin-20 (VCC) of ICBase-1 (74LS11) to VCC Port.
  3. Connect Pin-20 (VCC) of ICBase-2 (74LS32) to VCC Port.
  4. Connect Pin-7 (Ground) of ICBase-2 (74LS32) to GND Port.
  5. Add IC 74LS11 into ICBase-1 (74LS11).
  6. Connect Input-15 to Pin-1 (Input) of ICBase-1 (74LS11).
  7. Connect Input-14 to Pin-2 (Input) of ICBase-1 (74LS11).
  8. Connect Input-13 to Pin-19 (Input) of ICBase-1 (74LS11).
  9. Connect Pin-1 (Input) of ICBase-2 (74LS32) to Pin-18 (Output) of ICBase-1 (74LS11).
  10. Connect Pin-3 (Input) of ICBase-1 (74LS11) to Input-15.
  11. Connect Pin-4 (Input) of ICBase-1 (74LS11) to Input-14.
  12. Add IC 74LS32 into ICBase-2 (74LS32).
  13. Connect Pin-5 (Input) of ICBase-1 (74LS11) to Input-12.
  14. Connect Pin-2 (Input) of ICBase-2 (74LS32) to Pin-6 (Output) of ICBase-1 (74LS11).
  15. Connect Output-14 to Pin-3 (Output) of ICBase-2 (74LS32).
