Exp 2

Mayura
Mayura M L
• Created on Dec 29, 2022 • 0 • 0 • 2
Edit Circuit Copy Circuit Try Yourself

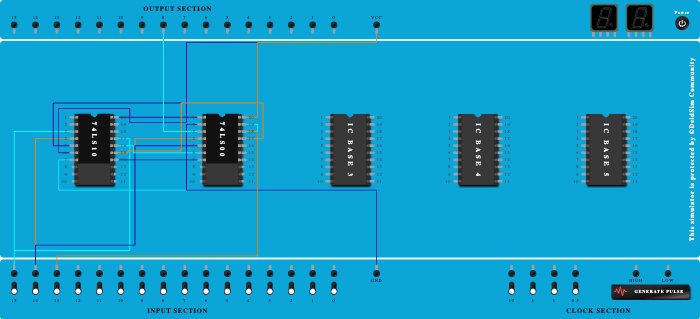

Exp 2
100%

Integrated Circuits Used

74LS10 74LS00

Procedure

  1. Add IC 74LS10 into ICBase-1 (74LS10).
  2. Connect Pin-20 (VCC) of ICBase-1 (74LS10) to VCC Port.
  3. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS10).
  4. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS00).
  5. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS00).
  6. Connect Input-15 to Pin-3 (Input) of ICBase-1 (74LS10).
  7. Connect Input-14 to Pin-4 (Input) of ICBase-1 (74LS10).
  8. Connect Pin-1 (Input) of ICBase-2 (74LS00) to Pin-6 (Output) of ICBase-1 (74LS10).
  9. Connect Pin-19 (Input) of ICBase-2 (74LS00) to Input-13.
  10. Connect Input-13 to Pin-18 (Input) of ICBase-2 (74LS00).
  11. Connect Pin-5 (Input) of ICBase-1 (74LS10) to Pin-17 (Output) of ICBase-2 (74LS00).
  12. Connect Pin-17 (Input) of ICBase-1 (74LS10) to Input-15.
  13. Add IC 74LS00 into ICBase-2 (74LS00).
  14. Connect Pin-4 (Input) of ICBase-2 (74LS00) to Input-14.
  15. Connect Pin-5 (Input) of ICBase-2 (74LS00) to Input-14.
  16. Connect Pin-16 (Input) of ICBase-1 (74LS10) to Pin-6 (Output) of ICBase-2 (74LS00).
  17. Connect Pin-15 (Input) of ICBase-1 (74LS10) to Pin-17 (Output) of ICBase-2 (74LS00).
  18. Connect Pin-2 (Input) of ICBase-2 (74LS00) to Pin-14 (Output) of ICBase-1 (74LS10).
  19. Connect Output-8 to Pin-3 (Output) of ICBase-2 (74LS00).
  20. Connect Input-14 to ICBase-2 (74LS00).
