Integrated Circuits Used

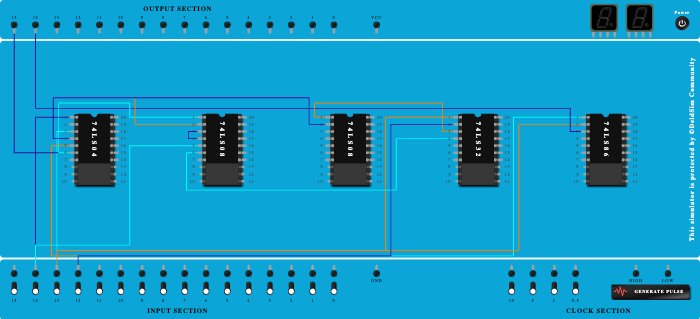

Procedure

  1. Add IC 74LS04 into ICBase-1 (74LS04).
  2. Add IC 74LS08 into ICBase-2 (74LS08).
  3. Add IC 74LS08 into ICBase-3 (74LS08).
  4. Add IC 74LS32 into ICBase-4 (74LS32).
  5. Add IC 74LS86 into ICBase-5 (74LS86).
  6. Connect Pin-1 (Input) of ICBase-1 (74LS04) to Input-14.
  7. Connect Pin-3 (Input) of ICBase-1 (74LS04) to Input-13.
  8. Connect Pin-5 (Input) of ICBase-1 (74LS04) to Input-12.
  9. Connect Output-15 to Pin-6 (Output) of ICBase-1 (74LS04).
  10. Connect Pin-1 (Input) of ICBase-5 (74LS86) to Input-12.
  11. Connect Pin-2 (Input) of ICBase-5 (74LS86) to Input-13.
  12. Connect Output-14 to Pin-3 (Output) of ICBase-5 (74LS86).
  13. Connect Pin-1 (Input) of ICBase-2 (74LS08) to Pin-6 (Output) of ICBase-1 (74LS04).
  14. Connect Pin-2 (Input) of ICBase-2 (74LS08) to Pin-4 (Output) of ICBase-1 (74LS04).
  15. Connect Pin-4 (Input) of ICBase-2 (74LS08) to Pin-3 (Output) of ICBase-2 (74LS08).
  16. Connect Pin-5 (Input) of ICBase-2 (74LS08) to Input-14.
  17. Connect Pin-1 (Input) of ICBase-4 (74LS32) to Input-13.
  18. Connect Pin-2 (Input) of ICBase-4 (74LS32) to Input-12.
  19. Connect Pin-4 (Input) of ICBase-4 (74LS32) to Pin-6 (Output) of ICBase-2 (74LS08).
  20. Connect Pin-1 (Input) of ICBase-3 (74LS08) to Pin-3 (Output) of ICBase-4 (74LS32).
  21. Connect Pin-4 (Output) of ICBase-1 (74LS04) to Pin-2 (Input) of ICBase-3 (74LS08).
