Integrated Circuits Used

Description

sfeyjui

Procedure

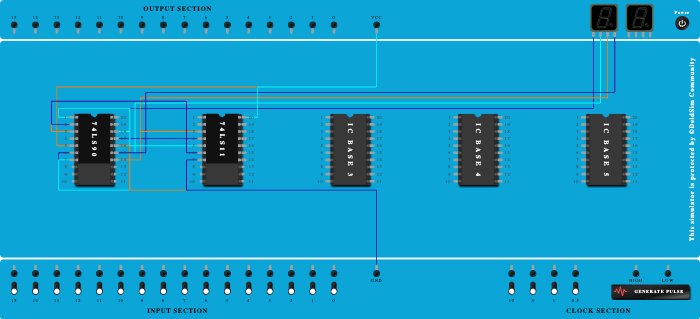

  1. Add IC 74LS90 into ICBase-1 (74LS90).
  2. Connect Seven segment display 2 to Pin-18 (Output) of ICBase-1 (74LS90).
  3. Connect Seven segment display 2 to Pin-15 (Output) of ICBase-1 (74LS90).
  4. Connect Seven segment display 2 to Pin-14 (Output) of ICBase-1 (74LS90).
  5. Connect Seven segment display 2 to Pin-17 (Output) of ICBase-1 (74LS90).
  6. Connect Pin-1 (Input) of ICBase-1 (74LS90) to Pin-18 (Output) of ICBase-1 (74LS90).
  7. Connect VCC Port to Pin-5 (VCC) of ICBase-1 (74LS90).
  8. Connect GND Port to Pin-6 (Input) of ICBase-1 (74LS90).
  9. Connect GND Port to Pin-7 (Input) of ICBase-1 (74LS90).
  10. Connect GND Port to Pin-16 (Ground) of ICBase-1 (74LS90).
  11. Add IC 74LS11 into ICBase-2 (74LS11).
  12. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS11).
  13. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS11).
  14. Connect Pin-3 (Input) of ICBase-2 (74LS11) to Pin-14 (Output) of ICBase-1 (74LS90).
  15. Connect Pin-4 (Input) of ICBase-2 (74LS11) to Pin-15 (Output) of ICBase-1 (74LS90).
  16. Connect Pin-5 (Input) of ICBase-2 (74LS11) to Pin-18 (Output) of ICBase-1 (74LS90).
  17. Connect Pin-3 (Input) of ICBase-1 (74LS90) to Pin-6 (Output) of ICBase-2 (74LS11).
  18. Connect Pin-2 (Input) of ICBase-1 (74LS90) to Pin-6 (Output) of ICBase-2 (74LS11).
