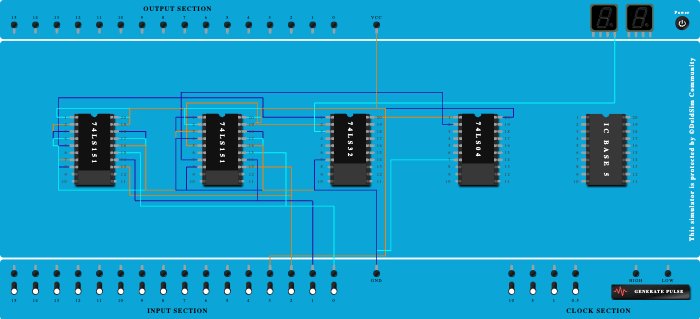

Multiplexer
100%

Integrated Circuits Used

74LS151 74LS04 74LS32

Procedure

  1. Add IC 74LS151 into ICBase-1 (74LS151).
  2. Connect GND Port to Pin-8 (Ground) of ICBase-1 (74LS151).
  3. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS151).
  4. Connect Input-2 to Pin-13 (Input) of ICBase-1 (74LS151).
  5. Connect Input-1 to Pin-14 (Input) of ICBase-1 (74LS151).
  6. Connect Input-0 to Pin-15 (Input) of ICBase-1 (74LS151).
  7. Connect Pin-2 (Input) of ICBase-3 (74LS32) to Pin-5 (Output) of ICBase-2 (74LS151).
  8. Connect Pin-1 (Input) of ICBase-3 (74LS32) to Pin-5 (Output) of ICBase-1 (74LS151).
  9. Connect Seven segment display 2 to Pin-3 (Output) of ICBase-3 (74LS32).
  10. Connect GND Port to Pin-7 (Input) of ICBase-1 (74LS151).
  11. Add IC 74LS04 into ICBase-4 (74LS04).
  12. Connect GND Port to Pin-8 (Ground) of ICBase-2 (74LS151).
  13. Connect Input-3 to GND Port.
  14. Connect Pin-1 (Input) of ICBase-4 (74LS04) to Input-3.
  15. Connect Pin-7 (Input) of ICBase-2 (74LS151) to Pin-2 (Output) of ICBase-4 (74LS04).
  16. Connect VCC Port to Pin-1 (Input) of ICBase-1 (74LS151).
  17. Connect GND Port to Pin-2 (Input) of ICBase-1 (74LS151).
  18. Connect GND Port to Pin-3 (Input) of ICBase-1 (74LS151).
  19. Connect Pin-4 (Input) of ICBase-1 (74LS151) to GND Port.
  20. Connect VCC Port to Pin-19 (Input) of ICBase-1 (74LS151).
  21. Connect GND Port to Pin-18 (Input) of ICBase-1 (74LS151).
  22. Connect Pin-17 (Input) of ICBase-1 (74LS151) to GND Port.
  23. Connect GND Port to Pin-16 (Input) of ICBase-1 (74LS151).
  24. Connect Pin-1 (Input) of ICBase-2 (74LS151) to GND Port.
  25. Connect VCC Port to Pin-2 (Input) of ICBase-2 (74LS151).
  26. Connect Pin-3 (Input) of ICBase-2 (74LS151) to GND Port.
  27. Connect GND Port to Pin-4 (Input) of ICBase-2 (74LS151).
  28. Add IC 74LS151 into ICBase-2 (74LS151).
  29. Connect Pin-20 (VCC) of ICBase-2 (74LS151) to VCC Port.
  30. Connect Pin-13 (Input) of ICBase-2 (74LS151) to Input-2.
  31. Connect Input-1 to Pin-14 (Input) of ICBase-2 (74LS151).
  32. Connect Pin-15 (Input) of ICBase-2 (74LS151) to Input-0.
  33. Connect VCC Port to Pin-19 (Input) of ICBase-2 (74LS151).
  34. Connect GND Port to Pin-18 (Input) of ICBase-2 (74LS151).
  35. Connect Pin-17 (Input) of ICBase-2 (74LS151) to GND Port.
  36. Connect GND Port to Pin-16 (Input) of ICBase-2 (74LS151).
  37. Connect Pin-20 (VCC) of ICBase-4 (74LS04) to VCC Port.
  38. Connect Pin-7 (Ground) of ICBase-4 (74LS04) to GND Port.
  39. Connect VCC Port to ICBase-4 (74LS04).
  40. Connect GND Port to ICBase-4 (74LS04).
  41. Add IC 74LS32 into ICBase-3 (74LS32).
  42. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS32).
  43. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS32).
