Integrated Circuits Used

Procedure

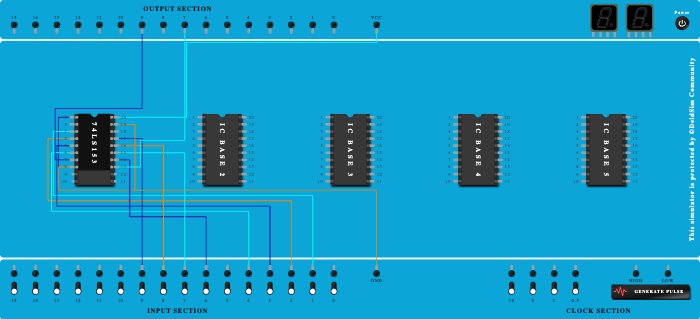

  1. Add IC 74LS153 into ICBase-1 (74LS153).
  2. Connect GND Port to Pin-1 (Input) of ICBase-1 (74LS153).
  3. Connect Input-1 to Pin-3 (Input) of ICBase-1 (74LS153).
  4. Connect Input-2 to Pin-4 (Input) of ICBase-1 (74LS153).
  5. Connect Input-3 to Pin-5 (Input) of ICBase-1 (74LS153).
  6. Connect Input-4 to Pin-6 (Input) of ICBase-1 (74LS153).
  7. Connect Pin-8 (Ground) of ICBase-1 (74LS153) to GND Port.
  8. Connect Input-6 to Pin-14 (Input) of ICBase-1 (74LS153).
  9. Connect Pin-15 (Input) of ICBase-1 (74LS153) to Input-7.
  10. Connect Input-8 to Pin-16 (Input) of ICBase-1 (74LS153).
  11. Connect Pin-17 (Input) of ICBase-1 (74LS153) to Input-9.
  12. Connect Pin-20 (VCC) of ICBase-1 (74LS153) to VCC Port.
  13. Connect GND Port to Pin-19 (Input) of ICBase-1 (74LS153).
  14. Connect Output-9 to Pin-7 (Output) of ICBase-1 (74LS153).
  15. Connect Output-7 to Pin-13 (Output) of ICBase-1 (74LS153).
  16. Connect GND Port to ICBase-1 (74LS153).
  17. Connect Input-6 to ICBase-1 (74LS153).
  18. Connect Input-7 to ICBase-1 (74LS153).
  19. Connect Input-7 to ICBase-1 (74LS153).
  20. Connect Input-9 to ICBase-1 (74LS153).
  21. Connect VCC Port to ICBase-1 (74LS153).
