Clocked SR circuit

Suman
Suman Kumar Pal
• Created on Jan 15, 2023 • 0 • 0 • 1
Edit Circuit Copy Circuit Try Yourself
Clocked SR circuit
100%

Integrated Circuits Used

74LS00

Description

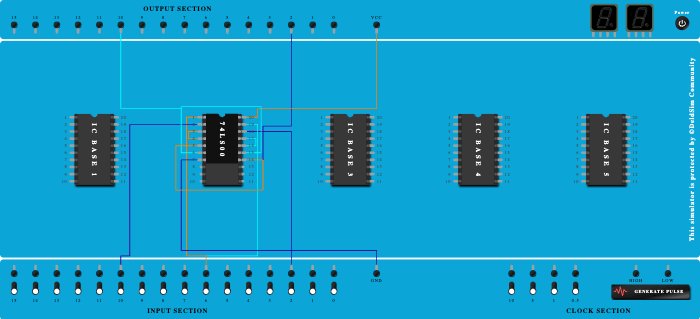

S: input 2, R: input 10, Clk: input 6 Q: output 2, Qbar: output 10

Procedure

  1. Add IC 74LS00 into ICBase-2 (74LS00).
  2. Connect Pin-18 (Input) of ICBase-2 (74LS00) to Input-2.
  3. Connect Pin-19 (Input) of ICBase-2 (74LS00) to Input-6.
  4. Connect Pin-1 (Input) of ICBase-2 (74LS00) to Input-6.
  5. Connect Pin-2 (Input) of ICBase-2 (74LS00) to Input-10.
  6. Connect Pin-16 (Input) of ICBase-2 (74LS00) to Pin-17 (Output) of ICBase-2 (74LS00).
  7. Connect Pin-4 (Input) of ICBase-2 (74LS00) to Pin-3 (Output) of ICBase-2 (74LS00).
  8. Connect Output-2 to Pin-14 (Output) of ICBase-2 (74LS00).
  9. Connect Output-10 to Pin-6 (Output) of ICBase-2 (74LS00).
  10. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS00).
  11. Connect Pin-7 (Ground) of ICBase-2 (74LS00) to GND Port.
  12. Connect Pin-6 (Output) of ICBase-2 (74LS00) to Pin-15 (Input) of ICBase-2 (74LS00).
  13. Connect Pin-14 (Output) of ICBase-2 (74LS00) to Pin-5 (Input) of ICBase-2 (74LS00).
