7493
100%

Integrated Circuits Used

74LS93 74LS08

Description

mod-6

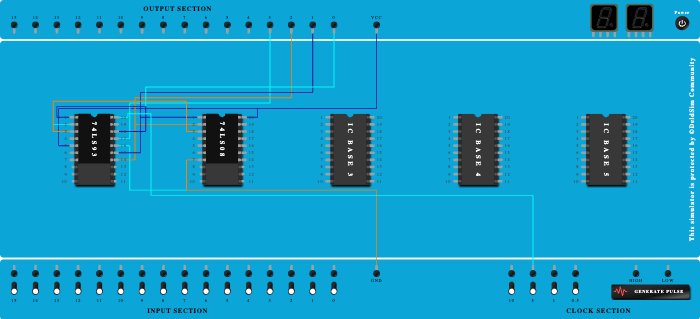

Procedure

  1. Add IC 74LS93 into ICBase-1 (74LS93).
  2. Add IC 74LS08 into ICBase-2 (74LS08).
  3. Connect VCC Port to Pin-5 (VCC) of ICBase-1 (74LS93).
  4. Connect GND Port to Pin-16 (Ground) of ICBase-1 (74LS93).
  5. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS08).
  6. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS08).
  7. Connect Output-3 to Pin-17 (Output) of ICBase-1 (74LS93).
  8. Connect Output-2 to Pin-14 (Output) of ICBase-1 (74LS93).
  9. Connect Output-1 to Pin-15 (Output) of ICBase-1 (74LS93).
  10. Connect Output-0 to Pin-18 (Output) of ICBase-1 (74LS93).
  11. Connect Pin-2 (Input) of ICBase-2 (74LS08) to Pin-14 (Output) of ICBase-1 (74LS93).
  12. Connect Pin-1 (Input) of ICBase-2 (74LS08) to Pin-15 (Output) of ICBase-1 (74LS93).
  13. Connect Pin-2 (Input) of ICBase-1 (74LS93) to Pin-3 (Output) of ICBase-2 (74LS08).
  14. Connect Pin-3 (Input) of ICBase-1 (74LS93) to Pin-3 (Output) of ICBase-2 (74LS08).
  15. Connect Pin-18 (Output) of ICBase-1 (74LS93) to Pin-1 (Input) of ICBase-1 (74LS93).
  16. Connect Clock port of 5Hz frequency to Pin-20 (Input) of ICBase-1 (74LS93).
