BCD ADDER

Rajas
Rajas Nandgaonkar
• Created on Dec 27, 2022 • 0 • 0 • 3
Edit Circuit Copy Circuit Try Yourself

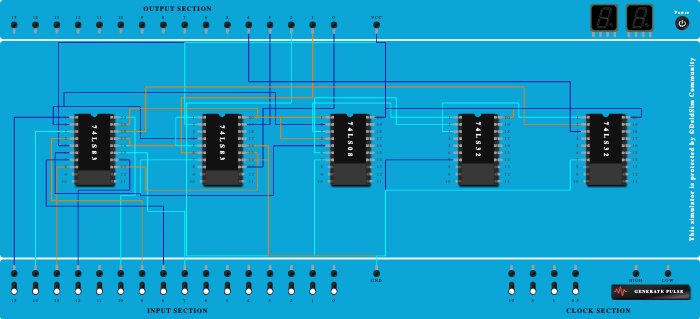

BCD ADDER
100%

Integrated Circuits Used

74LS83 74LS08 74LS32

Procedure

  1. Add IC 74LS83 into ICBase-1 (74LS83).
  2. Connect Pin-5 (VCC) of ICBase-1 (74LS83) to VCC Port.
  3. Connect Pin-16 (Ground) of ICBase-1 (74LS83) to GND Port.
  4. Connect GND Port to Pin-17 (Input) of ICBase-1 (74LS83).
  5. Connect Input-15 to Pin-1 (Input) of ICBase-1 (74LS83).
  6. Connect Input-14 to Pin-3 (Input) of ICBase-1 (74LS83).
  7. Connect Input-13 to Pin-8 (Input) of ICBase-1 (74LS83).
  8. Connect Input-12 to Pin-14 (Input) of ICBase-1 (74LS83).
  9. Connect Input-10 to Pin-20 (Input) of ICBase-1 (74LS83).
  10. Connect Input-9 to Pin-4 (Input) of ICBase-1 (74LS83).
  11. Connect Input-8 to Pin-7 (Input) of ICBase-1 (74LS83).
  12. Connect Input-7 to Pin-15 (Input) of ICBase-1 (74LS83).
  13. Add IC 74LS83 into ICBase-2 (74LS83).
  14. Connect Pin-20 (Input) of ICBase-2 (74LS83) to Pin-19 (Output) of ICBase-1 (74LS83).
  15. Connect Pin-4 (Input) of ICBase-2 (74LS83) to Pin-2 (Output) of ICBase-1 (74LS83).
  16. Connect Pin-7 (Input) of ICBase-2 (74LS83) to Pin-6 (Output) of ICBase-1 (74LS83).
  17. Connect Pin-15 (Input) of ICBase-2 (74LS83) to Pin-13 (Output) of ICBase-1 (74LS83).
  18. Connect Output-3 to Pin-19 (Output) of ICBase-2 (74LS83).
  19. Connect Output-2 to Pin-2 (Output) of ICBase-2 (74LS83).
  20. Connect Output-1 to Pin-6 (Output) of ICBase-2 (74LS83).
  21. Connect Output-0 to Pin-13 (Output) of ICBase-2 (74LS83).
  22. Connect Pin-5 (VCC) of ICBase-2 (74LS83) to VCC Port.
  23. Connect GND Port to Pin-16 (Ground) of ICBase-2 (74LS83).
  24. Add IC 74LS08 into ICBase-3 (74LS08).
  25. Connect Pin-20 (VCC) of ICBase-3 (74LS08) to VCC Port.
  26. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS08).
  27. Connect Pin-1 (Input) of ICBase-3 (74LS08) to Pin-19 (Output) of ICBase-1 (74LS83).
  28. Connect Pin-2 (Input) of ICBase-3 (74LS08) to Pin-2 (Output) of ICBase-1 (74LS83).
  29. Add IC 74LS32 into ICBase-4 (74LS32).
  30. Connect Pin-1 (Input) of ICBase-4 (74LS32) to Pin-3 (Output) of ICBase-3 (74LS08).
  31. Connect Pin-4 (Input) of ICBase-3 (74LS08) to Pin-19 (Output) of ICBase-1 (74LS83).
  32. Connect Pin-5 (Input) of ICBase-3 (74LS08) to Pin-6 (Output) of ICBase-1 (74LS83).
  33. Connect Pin-2 (Input) of ICBase-4 (74LS32) to Pin-6 (Output) of ICBase-3 (74LS08).
  34. Connect VCC Port to Pin-20 (VCC) of ICBase-4 (74LS32).
  35. Connect Pin-7 (Ground) of ICBase-4 (74LS32) to GND Port.
  36. Add IC 74LS32 into ICBase-5 (74LS32).
  37. Connect Pin-1 (Input) of ICBase-5 (74LS32) to Pin-3 (Output) of ICBase-4 (74LS32).
  38. Connect Pin-2 (Input) of ICBase-5 (74LS32) to Pin-18 (Output) of ICBase-1 (74LS83).
  39. Connect Output-4 to Pin-3 (Output) of ICBase-5 (74LS32).
  40. Connect GND Port to Pin-1 (Input) of ICBase-2 (74LS83).
  41. Connect GND Port to Pin-14 (Input) of ICBase-2 (74LS83).
  42. Connect VCC Port to Pin-20 (VCC) of ICBase-5 (74LS32).
  43. Connect GND Port to Pin-7 (Ground) of ICBase-5 (74LS32).
  44. Connect Pin-6 (Output) of ICBase-1 (74LS83) to ICBase-3 (74LS08).
  45. Connect Pin-18 (Output) of ICBase-1 (74LS83) to ICBase-5 (74LS32).
