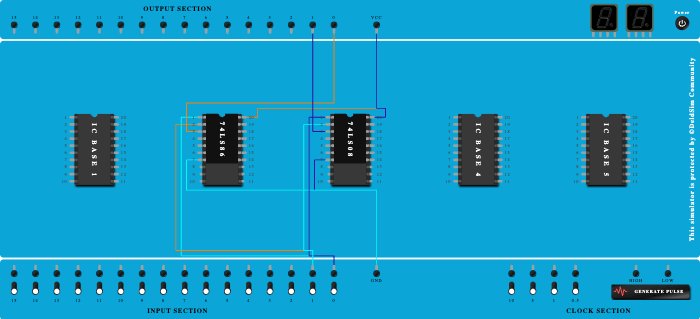

My half adder
100%

Integrated Circuits Used

74LS86 74LS08

Description

7486 XOR, 7408 AND

Procedure

  1. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS08).
  2. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS86).
  3. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS86).
  4. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS08).
  5. Connect Pin-1 (Input) of ICBase-2 (74LS86) to Input-0.
  6. Connect Pin-2 (Input) of ICBase-2 (74LS86) to Input-1.
  7. Connect Pin-1 (Input) of ICBase-3 (74LS08) to Input-0.
  8. Connect Pin-2 (Input) of ICBase-3 (74LS08) to Input-1.
  9. Connect Output-0 to Pin-3 (Output) of ICBase-2 (74LS86).
  10. Connect Output-1 to Pin-3 (Output) of ICBase-3 (74LS08).
  11. Add IC 74LS86 into ICBase-2 (74LS86).
  12. Add IC 74LS08 into ICBase-3 (74LS08).
